Key Inter Lock Switch

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

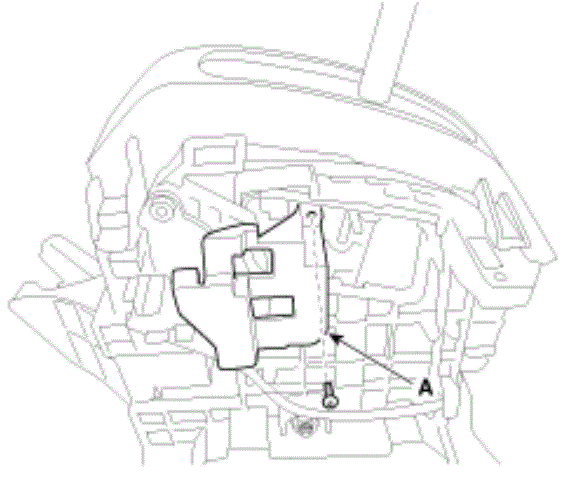

  1. Remove the plastic bracket (B) by loosening the screw (A).
    G12825962Courtesy of KIA MOTORS AMERICA, INC.

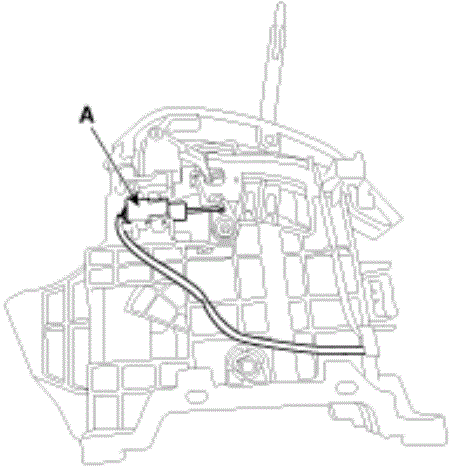

  2. Remove the shift lock solenoid (A) from the shift lever assembly.
    G12825963Courtesy of KIA MOTORS AMERICA, INC.

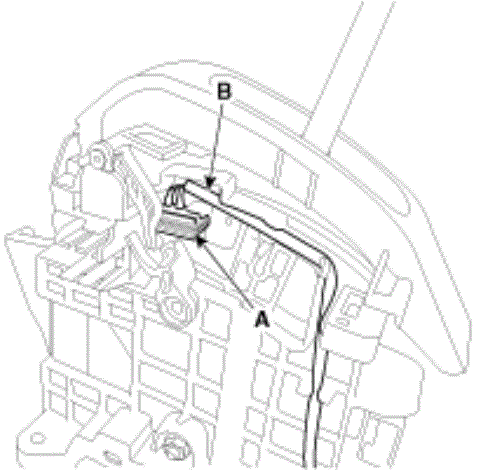

  3. Disconnect the key inter lock switch (B) by removing the plastic bracket (A).
    G12825964Courtesy of KIA MOTORS AMERICA, INC.

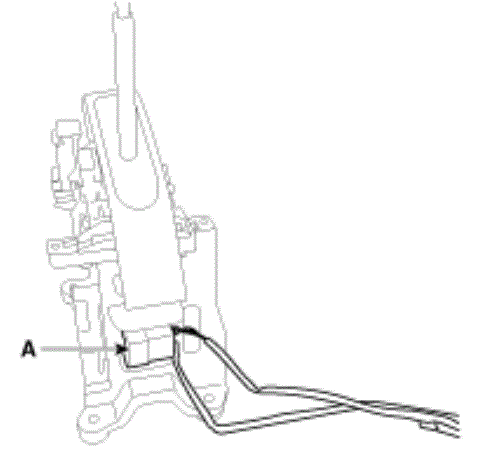

  4. Disconnect the shift lever main connector (A).
    G12825965Courtesy of KIA MOTORS AMERICA, INC.

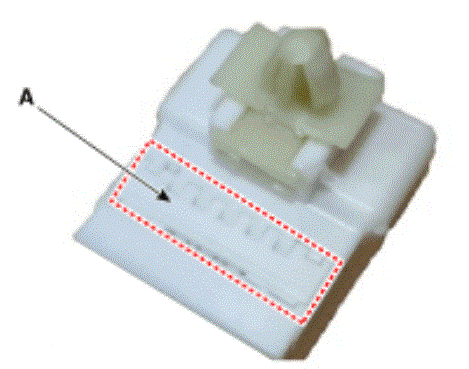

  5. Remove the wiring fixed bracket in the main connector.
    G12825966Courtesy of KIA MOTORS AMERICA, INC.

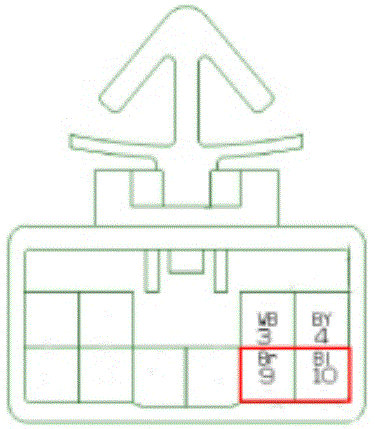

  6. Remove the shift lock solenoid wiring from the main connector
    NOTE: Be sure to check the wiring color before disconnecting the wiring.
    G12825967Courtesy of KIA MOTORS AMERICA, INC.
    Pin Function
    3 Shift lock solenoid (-)
    4 Shift lock solenoid (+)
    9 Key inter lock switch (-)
    10 Key inter lock switch (+)
