2019 Kia Forte EXFACTORY OEM SERVICE PROCEDURE
DTC Inspection: Notes
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
| 1. Ignition "ON". | 1. Connect KDS to Data Link Connector (DLC). 2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS. |

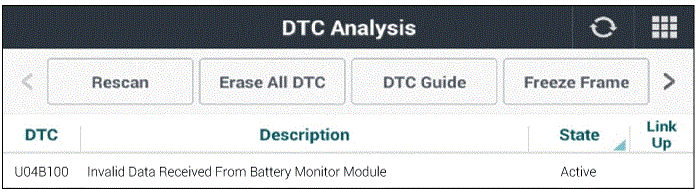

Fig.1 |
Active FaultÂ
• Go to "Monitor KDS Data " procedure.
History/Pending FaultÂ
• Go to "Verification Of Repair " procedure.
