Repair Procedures: Removal
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - " RELEASE RESIDUAL PRESSURE IN FUEL LINE ".)
- Turn the ignition switch OFF, and then remove battery (-) terminal.

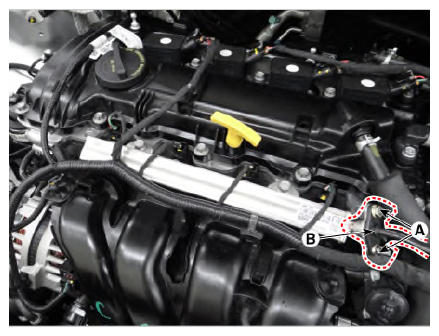

- Remove the installation nut (A), and then disconnect the fuel feed tube (B).
Delivery pipe installation nut (↔ Fuel feed tube):
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

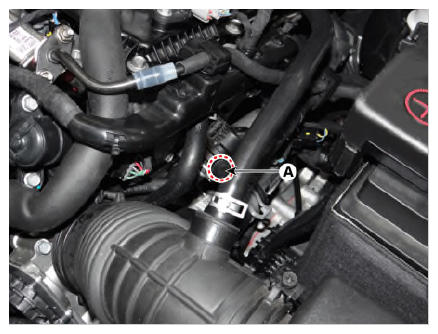

- Disconnect the vapor hose (A) which is connected from the PCSV.
- Lift the vehicle.
- Remove the fuel tank.
(Refer to Fuel Delivery System - "Fuel Tank")

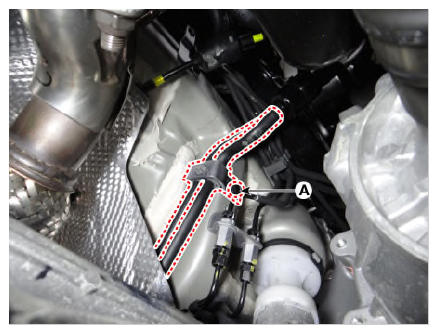

- Remove the fuel line fixing clip mounting bolt (A).

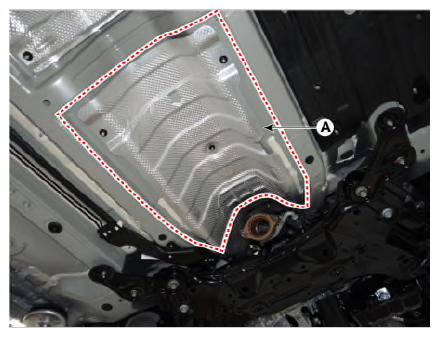

- Remove the heat protector (A) after loosening the mounting nuts.

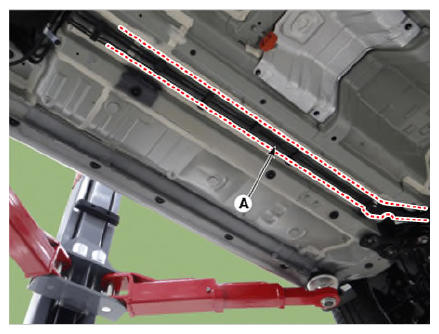

- Remove the fuel line (A).
