2019 Kia Forte EXFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Disassembly

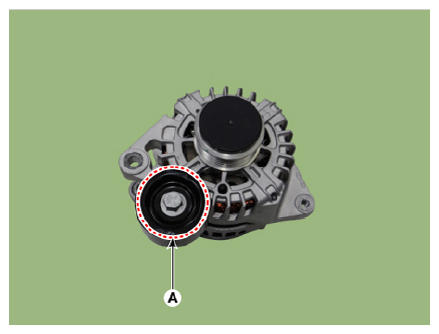

- Remove the pully (A) after loosening the mounting bolt.

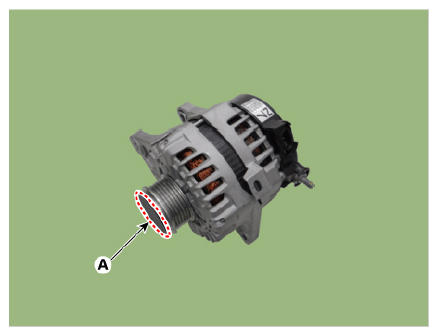

- Remove the OAP cap (A).

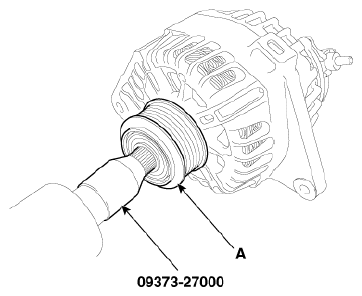

- Using the SST (09373-27000), remove the OAP pulley (A).

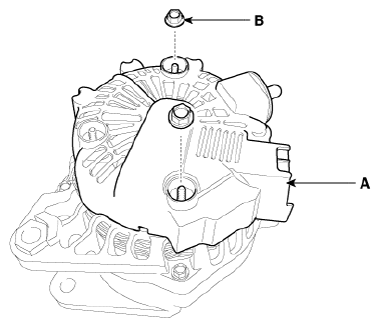

- Remove the rear cover (A) after removing nuts (B).

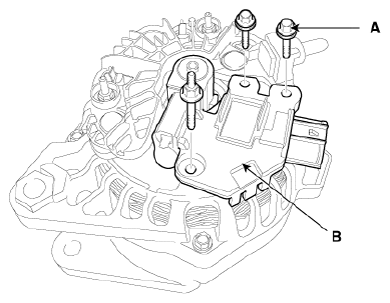

- Remove the mounting bolts (A) and the regulator assembly (B).
- Remove the slip ring guide (A) after pulling it.
- Unsolder the 3 stator leads (A).
- Remove the 4 through bolts (A).

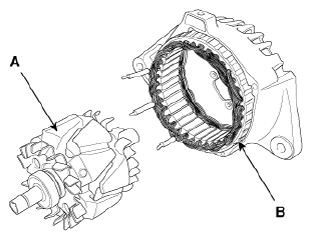

- Disconnect the rotor (A) and housing (B).
