2019 Kia Forte EXFACTORY OEM SERVICE PROCEDURE

Neutralization Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.

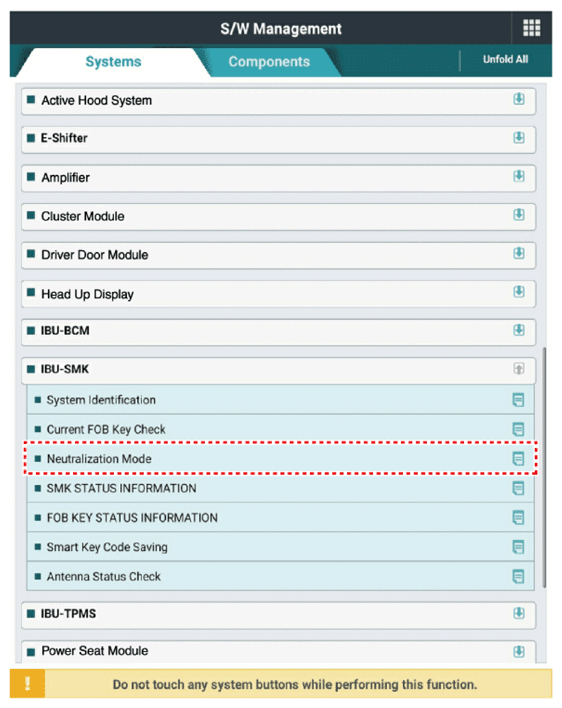

  2. After IG ON, select the "Neutralization mode".
    G12832749Courtesy of KIA MOTORS AMERICA, INC.

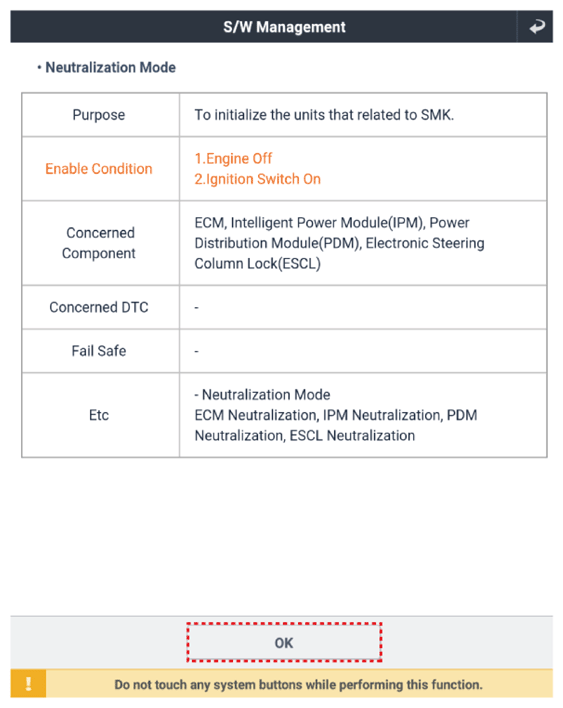

    G12832750Courtesy of KIA MOTORS AMERICA, INC.

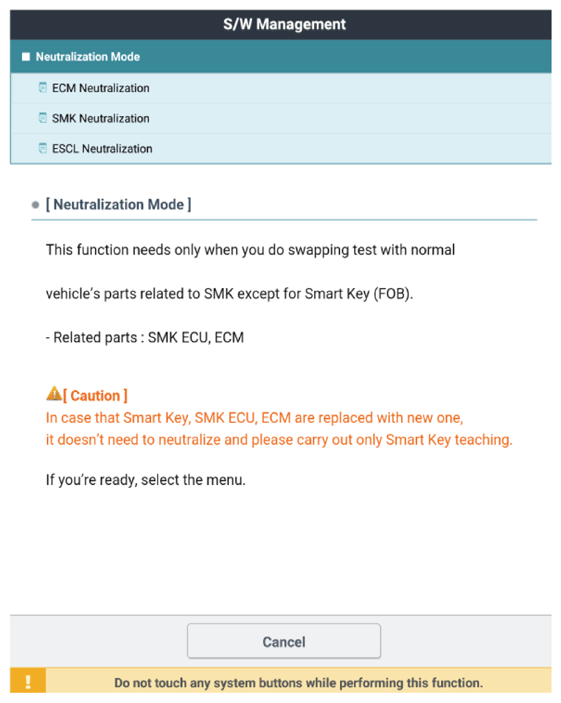

    G12832751Courtesy of KIA MOTORS AMERICA, INC.

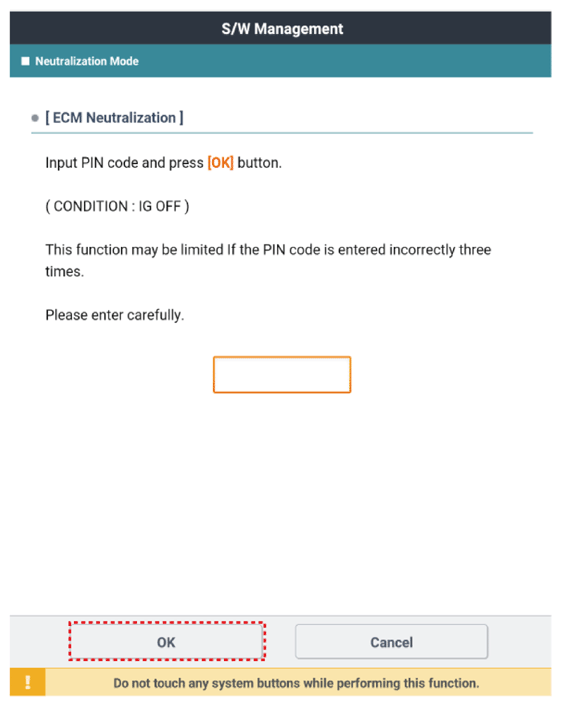

    G12832752Courtesy of KIA MOTORS AMERICA, INC.
    G12832753Courtesy of KIA MOTORS AMERICA, INC.

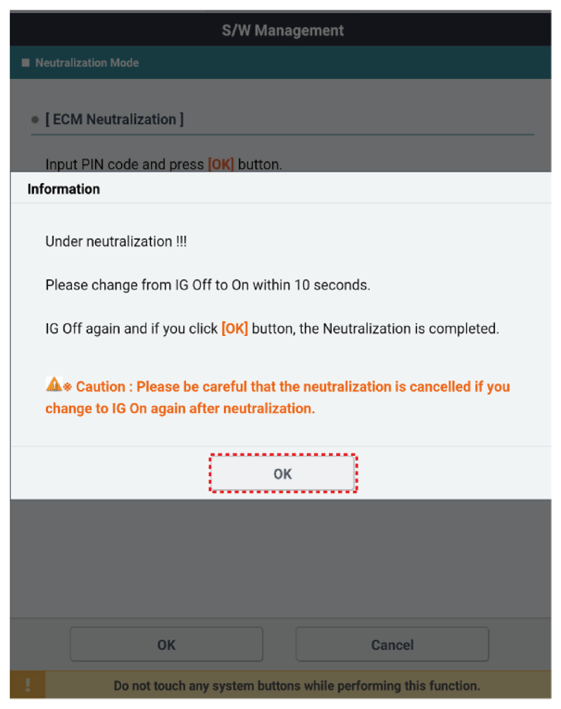

    G12832754Courtesy of KIA MOTORS AMERICA, INC.

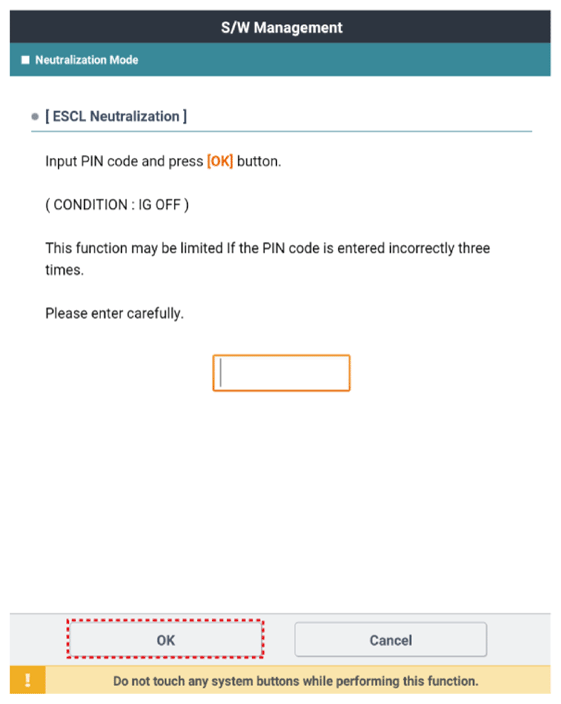

    G12832755Courtesy of KIA MOTORS AMERICA, INC.

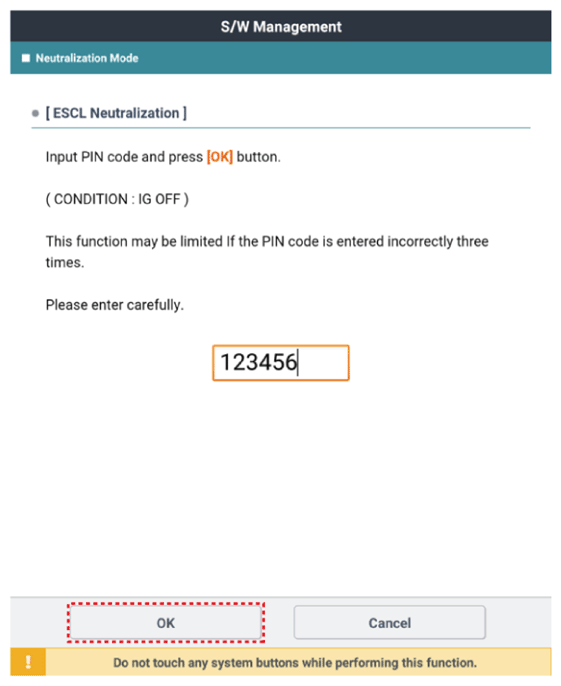

    G12832756Courtesy of KIA MOTORS AMERICA, INC.

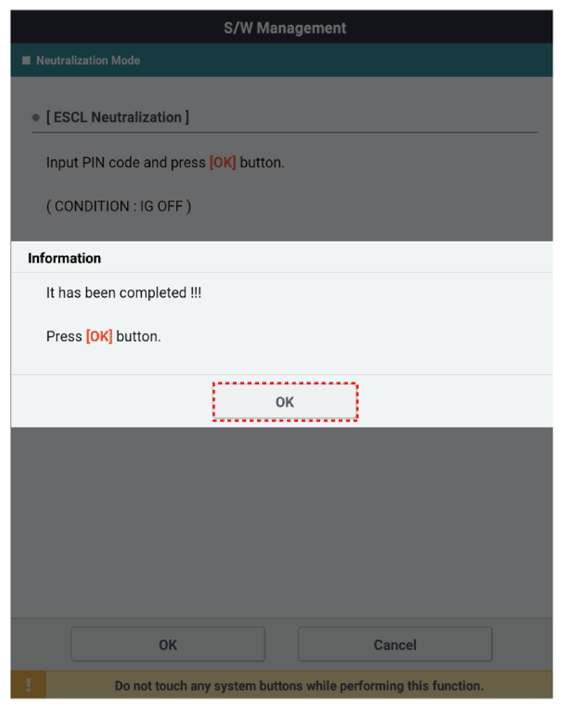

    G12832757Courtesy of KIA MOTORS AMERICA, INC.

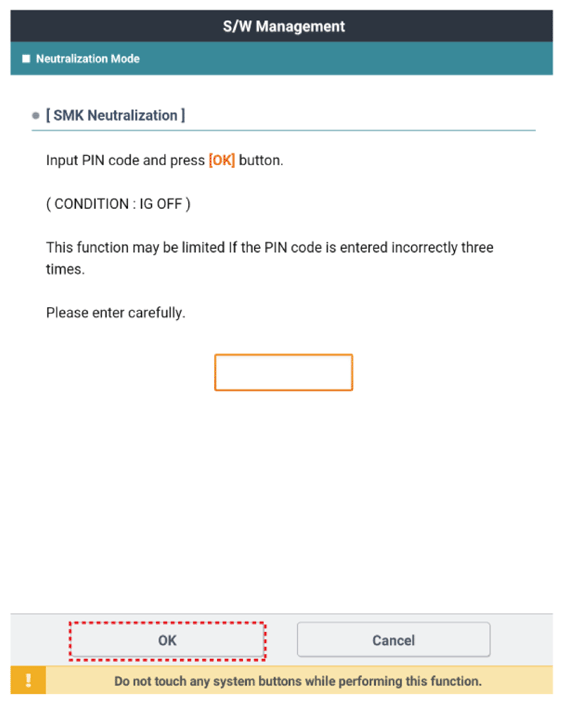

    G12832758Courtesy of KIA MOTORS AMERICA, INC.

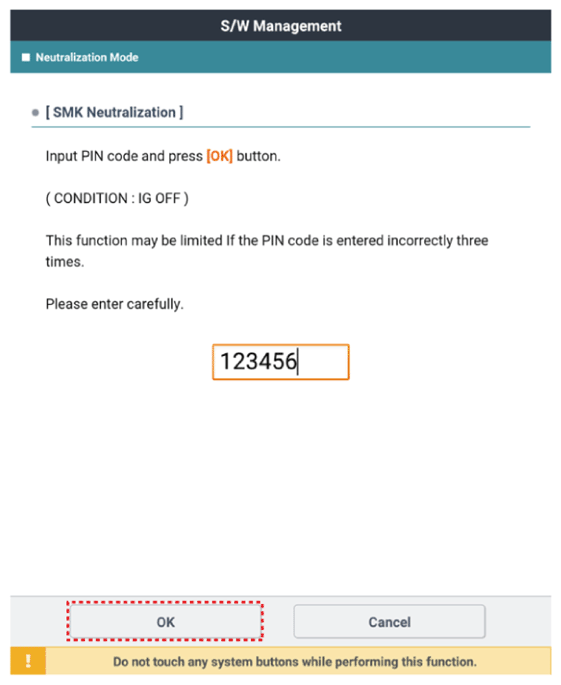

    G12832759Courtesy of KIA MOTORS AMERICA, INC.

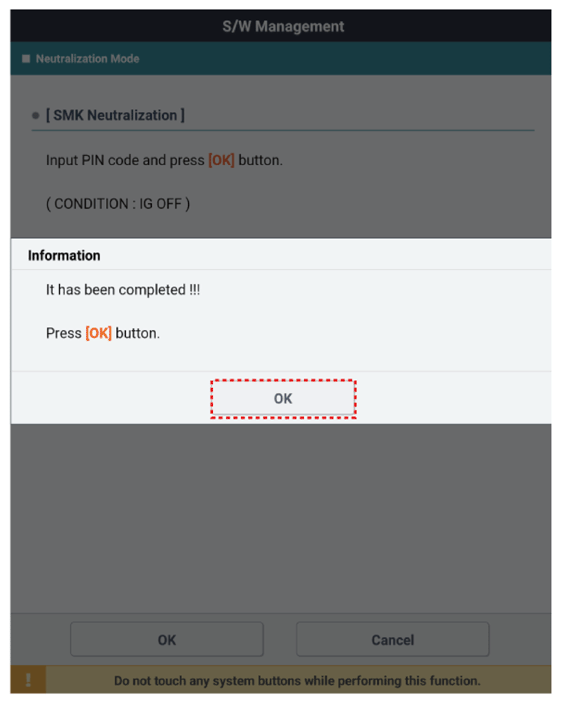

    G12832760Courtesy of KIA MOTORS AMERICA, INC.
