2019 Kia Forte EXFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Inspection: Notes

Check for resistance between terminals in each switch position (LH).

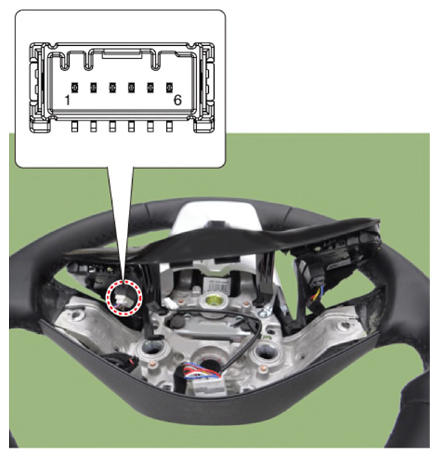

Fig 1: Checking For Resistance Between Terminals In Each Switch Position (LH)

Courtesy of KIA MOTORS AMERICA, INC.

[Audio + Bluetooth + Voice]

Switch	Connector terminal	Resistance (±3%)
SEEK Up	1-6	430 Ω
SEEK Down		1.11 kΩ
MODE		2.11 kΩ
MUTE		3.11 kΩ
Volume (+)		4.61 kΩ
Volume (-)		6.81 kΩ
Voice		10.71 kΩ
END		18.91 kΩ
SEND		40.91 kΩ

Check for resistance between terminals in each switch position (RH).

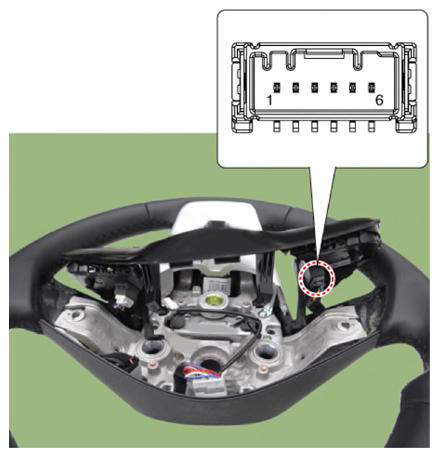

Fig 2: Checking For Resistance Between Terminals In Each Switch Position (RH)
Courtesy of KIA MOTORS AMERICA, INC.
