2018 Kia Sedona EXFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Inspection

WARNING: This page is about a different car, the 2018 Kia Cadenza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the overhead console lamp.
(Refer to Lighting System - "OVERHEAD CONSOLE LAMP ")
Disconnect the overhead console lamp connector (A).

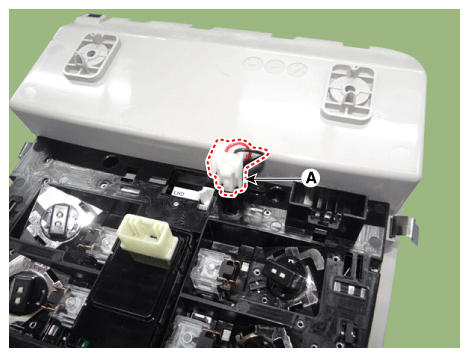

Fig 1: Locating Overhead Console Lamp Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the overhead console lamp cover (A) after loosening the mounting screws.

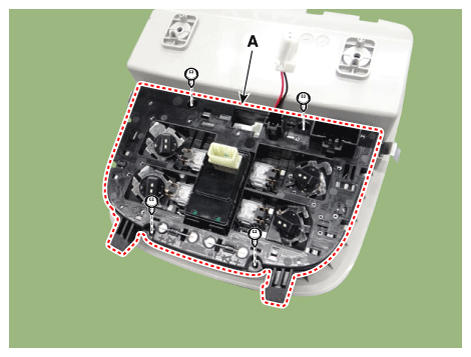

Fig 2: Locating Overhead Console Lamp Cover With Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Remove the hands free Mic (A) after loosening the mounting screws.

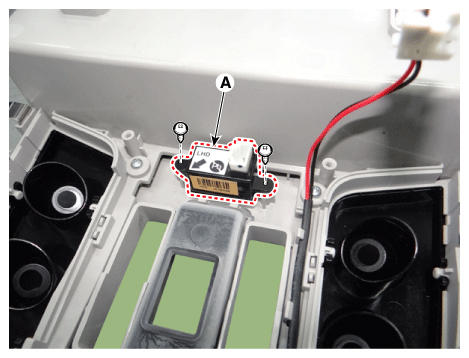

Fig 3: Locating Hands Free Mic With Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Check the continuity between terminals.

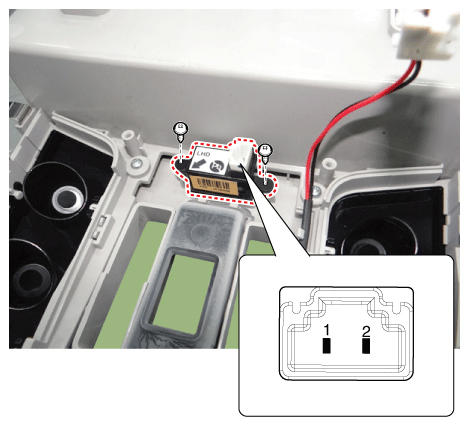

Fig 4: MIC With Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
