2018 Kia Sedona EXFACTORY OEM SERVICE PROCEDURE
Components And Components Location: Components
WARNING: This page is about a different car, the 2018 Kia Cadenza. However, it is still accessible from the selected car via links, so may be relevant.

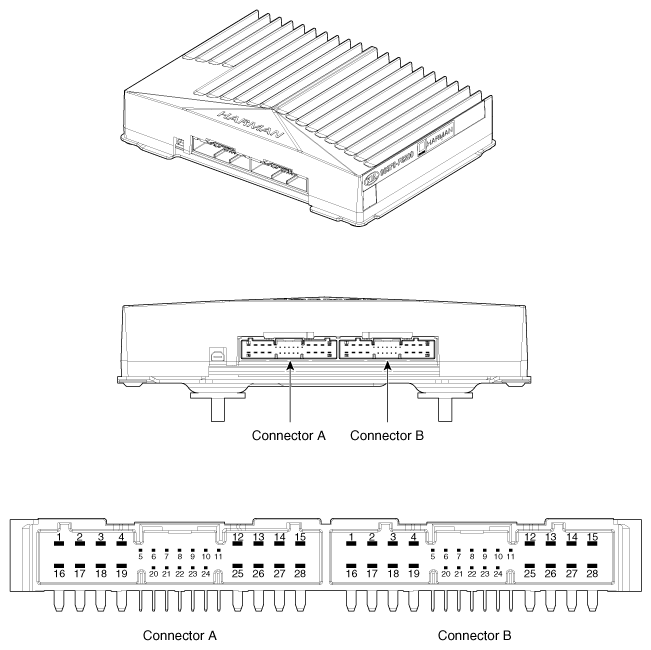

Connector Pin Information
| No. | Connector A | No. | Connector B |
|---|---|---|---|
| 1 | Battery (+) | 1 | Sub woofer speaker 2 (+) |
| 2 | Battery (+) | 2 | Sub woofer speaker 1 (+) |
| 3 | Battery (+) | 3 | Right front door speaker (+) |
| 4 | Battery (+) | 4 | Left front door speaker (+) |
| 5 | - | 5 | - |
| 6 | Multimedia CAN (High) | 6 | - |
| 7 | Multimedia CAN (Low) | 7 | - |
| 8 | ACC | 8 | - |
| 9 | Navigation voice (+) | 9 | - |
| 10 | - | 10 | - |
| 11 | - | 11 | - |
| 12 | Right front midrange speaker (+) | 12 | Right rear tweeter speaker (+) |
| 13 | Left front midrange speaker (+) | 13 | Left rear tweeter speaker (+) |
| 14 | Crash pad center speaker (+) | 14 | Right surround speaker (+) |
| 15 | - | 15 | Left surround speaker (+) |
| 16 | Ground | 16 | Sub woofer speaker 2 (-) |
| 17 | Ground | 17 | Sub woofer speaker 1 (-) |
| 18 | Ground | 18 | Right front door speaker (-) |
| 19 | Ground | 19 | Left front door speaker (-) |
| 20 | SPDIF (High) | 20 | - |
| 21 | SPDIF (Low) | 21 | - |
| 22 | SPDIF (Ground) | 22 | - |
| 23 | Navigation voice (-) | 23 | - |
| 24 | - | 24 | - |
| 25 | Right front midrange speaker (-) | 25 | Right rear tweeter speaker (-) |
| 26 | Left front midrange speaker (-) | 26 | Left rear tweeter speaker (-) |
| 27 | Crash pad center speaker (-) | 27 | Right surround speaker (-) |
| 28 | - | 28 | Left surround speaker (-) |
