2018 Kia Sedona EXFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Cadenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

  3. Remove the steering back cover (A) after loosening the mounting screws.

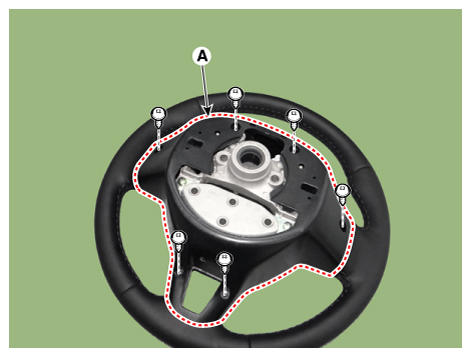

    Fig 1: Locating Steering Back Cover With Mounting Screws
    G12297309Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the steering wheel remote control connector (A).

    [LH]

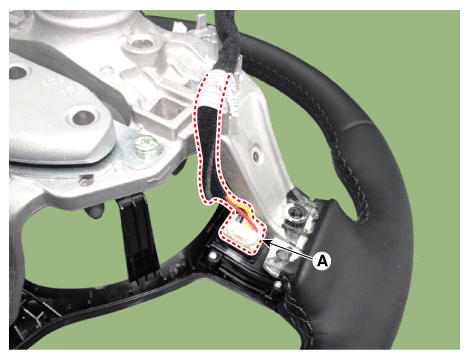

    Fig 2: Locating Steering Wheel Remote Control Connector (LH)
    G12297310Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

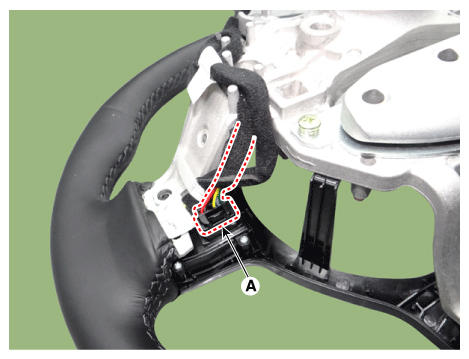

    Fig 3: Locating Steering Wheel Remote Control Connector (RH)
    G12297311Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the steering wheel remote control assembly (A) after loosening the mounting screws.

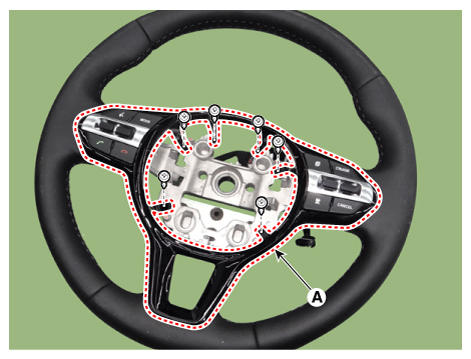

    Fig 4: Locating Steering Wheel Remote Control Assembly With Mounting Screws
    G12297312Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the steering wheel remote control (A) after loosening the mounting screws

    [LH]

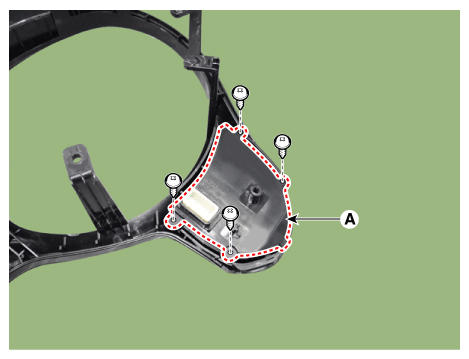

    Fig 5: Locating Steering Wheel Remote Control With Mounting Screws (LH)
    G12297313Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

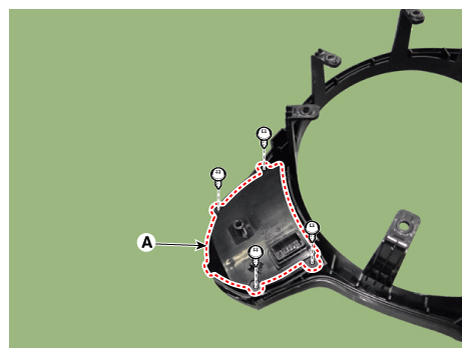

    Fig 6: Locating Steering Wheel Remote Control With Mounting Screws (RH)
    G12297314Courtesy of KIA MOTORS AMERICA, INC.
