2018 Kia Sedona EXFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
WARNING: This page is about a different car, the 2018 Kia Cadenza. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool to prevent damaging the surface.
- Disconnect the negative (-) battery terminal.
- Remove the center fascia upper panel.
(Refer to Body - "CENTER FASCIA PANEL ")

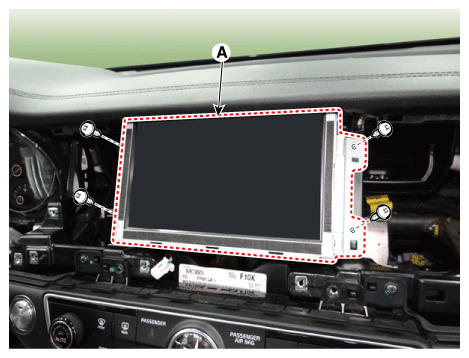

- Remove the AVN monitor (A) after loosening the screws.

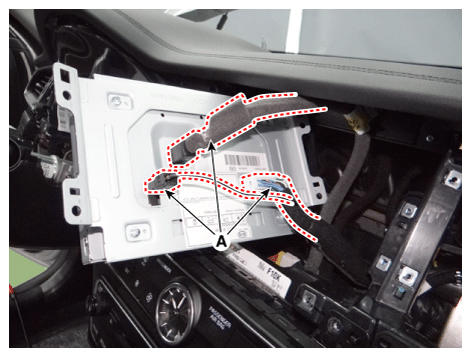

- Disconnect the AVN monitor connectors (A).
