2018 Kia Sedona EXFACTORY OEM SERVICE PROCEDURE
Components And Components Location: Components
WARNING: This page is about a different car, the 2018 Kia Cadenza. However, it is still accessible from the selected car via links, so may be relevant.

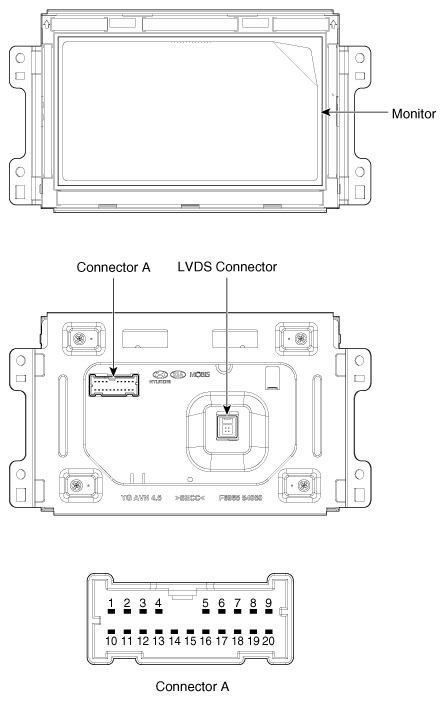

Connector Pin Information
| No. | Description | |
|---|---|---|
| Back View Camera | SVM Camera | |
| 1 | - | Camera VIN GND |
| 2 | - | Camera VIN (C) |
| 3 | Camera VIN (Y) | |
| 4 | Camera VIN (Y) GND | |
| 5 | Camera VIN (Y) Shield | |
| 6 | Multimedia-CAN (High) | |
| 7 | Multimedia-CAN (Low) | |
| 8 | - | |
| 9 | Battery (+) | |
| 10 | Camera video output (Y) | |
| 11 | - | Camera video output (C) |
| 12 | Camera video output (Y) GND | |
| 13 | - | Camera video output (C) GND |
| 14 | Camera video output shield | |
| 15 | Touch-CAN (Low) | |
| 16 | Touch-CAN (High) | |
| 17 | GND | |
| 18 | GND | |
| 19 | - | |
| LVDS Connector | No. | Description | No. | Description |
|---|---|---|---|---|
| 1 | LVDS (-) | 3 | GND | |
| 2 | GND | 4 | LVDS (+) |
