2018 Kia Optima Plug-In Hybrid EXFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

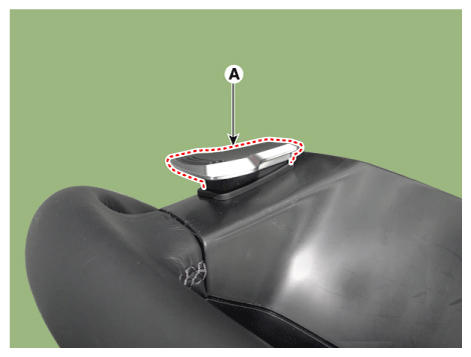

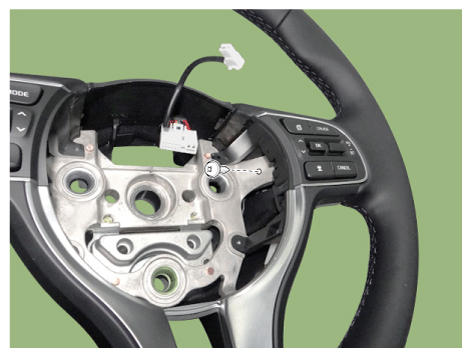

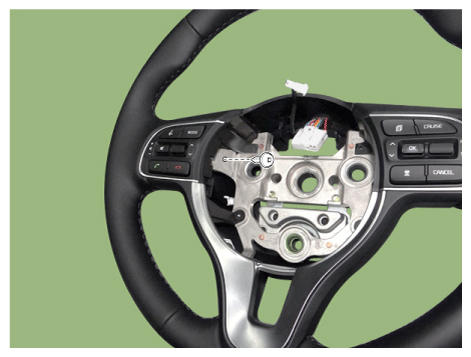

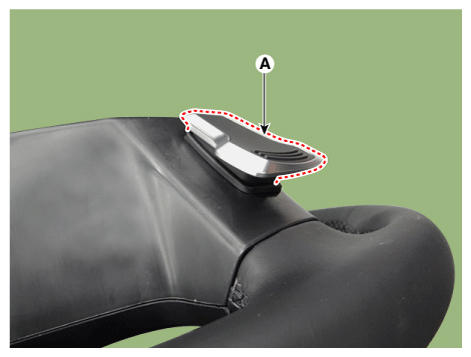

  3. Remove the paddle shift switch (A) after loosening the mounting screws.

    [LH]

    G12351181Courtesy of KIA MOTORS AMERICA, INC.
    G12351182Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G12351183Courtesy of KIA MOTORS AMERICA, INC.
    G12351184Courtesy of KIA MOTORS AMERICA, INC.

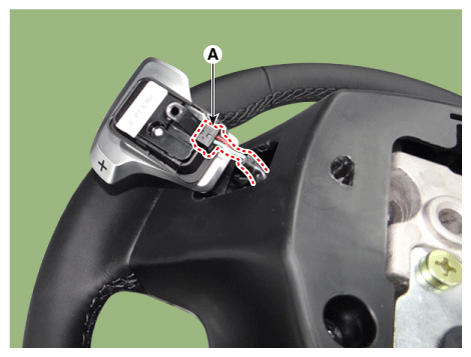

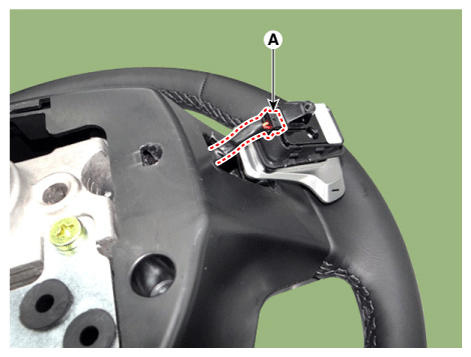

  4. Disconnect the paddle shift switch connector (A).

    [LH]

    G12351185Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G12351186Courtesy of KIA MOTORS AMERICA, INC.

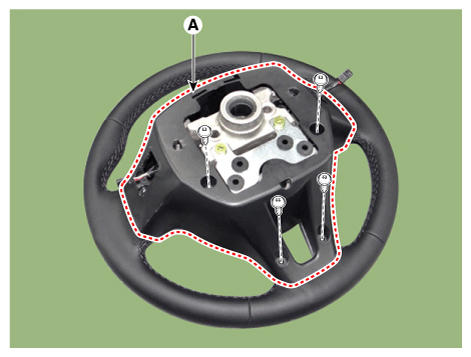

  5. Remove the screws from the steering back cover (A).
    G12351187Courtesy of KIA MOTORS AMERICA, INC.

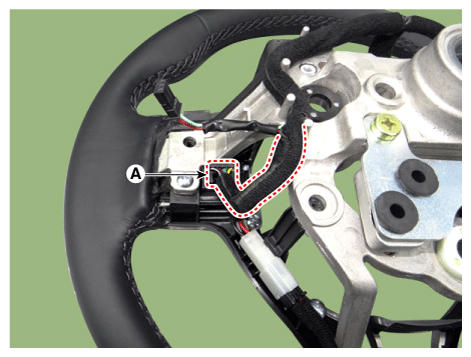

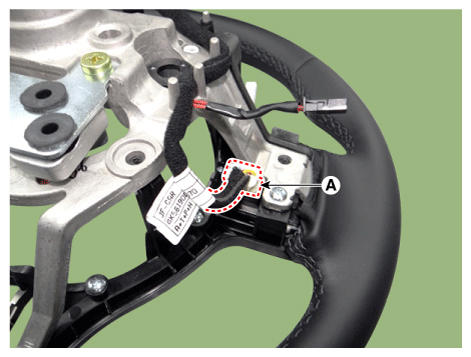

  6. Disconnect the steering remote control connector (A).

    [LH]

    G12351188Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G12351189Courtesy of KIA MOTORS AMERICA, INC.

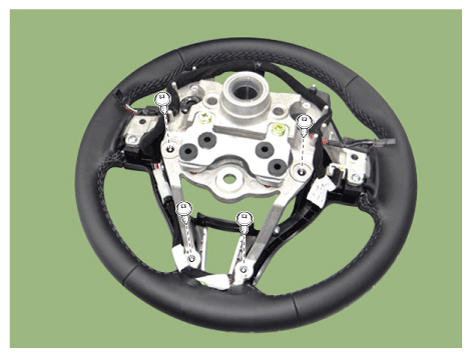

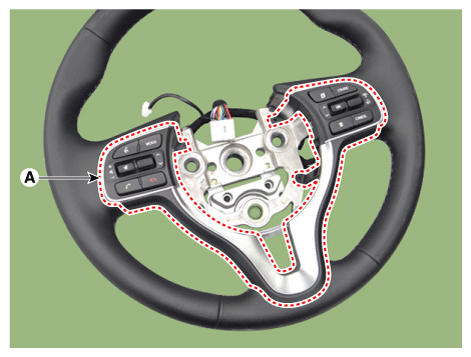

  7. Remove the steering remote control assembly (A) after loosening the mounting screws.
    G12351190Courtesy of KIA MOTORS AMERICA, INC.
    G12351191Courtesy of KIA MOTORS AMERICA, INC.

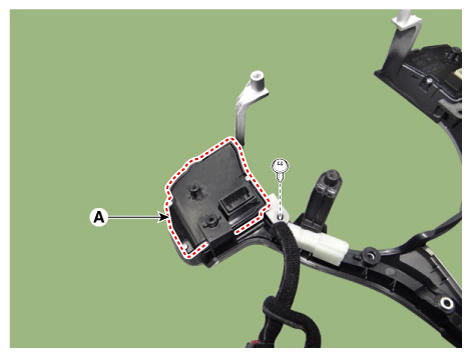

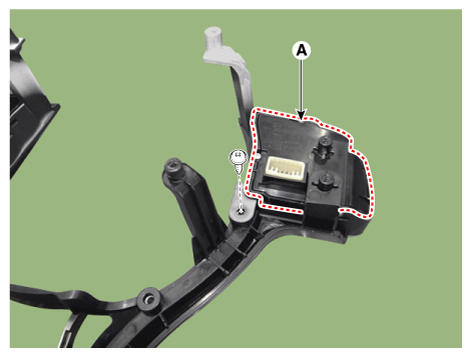

  8. Remove the steering remote control (A) after loosening the mounting screws.

    [LH]

G12351192Courtesy of KIA MOTORS AMERICA, INC.

[RH]

G12351193Courtesy of KIA MOTORS AMERICA, INC.
