Repair Procedures: Inspection

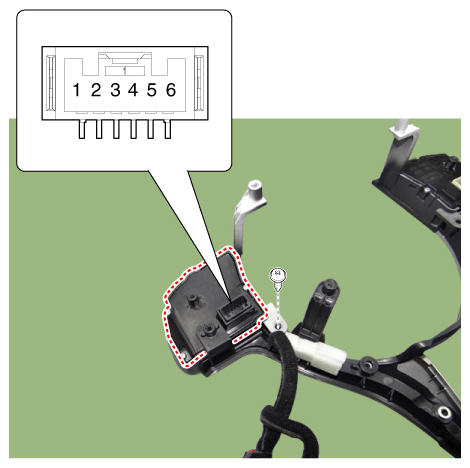

- Check the resistance between terminals in each switch position (LH).
[LH: Audio + Hands Free]
Switch Connector Terminal Resistance (±5%) SEEK Up 2-5 430 Ω SEEK Down 1.11 kΩ MODE 2.11 kΩ MUTE 3.11 kΩ Volume (+) 4.61 kΩ Volume (-) 6.81 kΩ Voice 10.71 kΩ END 18.91 kΩ SEND 40.91 kΩ - Check the resistance between terminals in each switch position (RH).

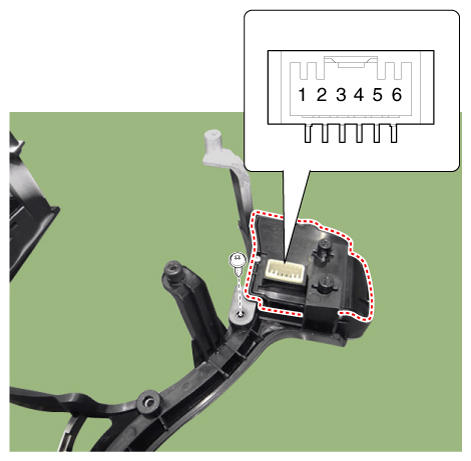

[RH: Trip + Cruise]
| Switch | Connector Terminal | Resistance (±5%) |
|---|---|---|
| Cancel | 3-5 | 390 Ω |
| SET - | 610 Ω | |
| RES + | 910 Ω | |
| Cruise ON/OFF | 2.13 kΩ | |
| SCC (Following distance control) | 3.63 kΩ | |
| Ground | 2-5 | 390 Ω |
| Trip Up | 610 Ω | |
| Trip Down | 910 kΩ | |
| ENTER | 1.38 kΩ | |
| BACK | 2.13 kΩ |
