2018 Kia Optima Plug-In Hybrid EXFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Installation
WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

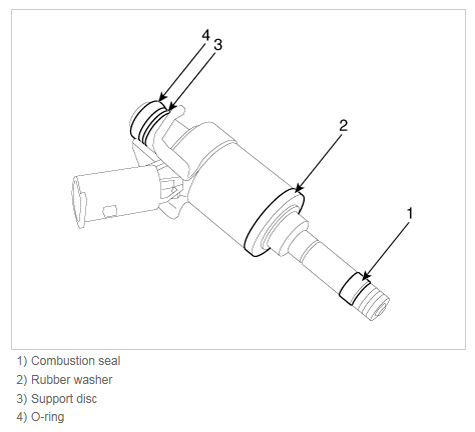

- Do not reuse the used injector fixing clip.
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
- Apply engine oil to the injector O-ring.
- Do not reuse the used injector O-ring.
- Do not reuse the used bolt.
- When inserting the injector, be careful not to damage the injector tip.
- Do not reuse the support disc.
- Do not reuse the injector rubber washer.

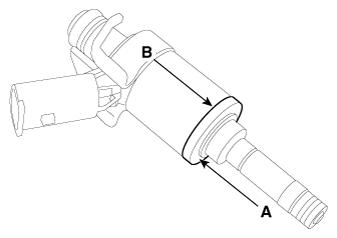

- When replacing the rubber washer, the steal plate (A) part should be faced the cylinder installation part and the rubber plate (B) part should be faced the injector body part.
- Do not reuse the combustion seal.
- Install in the reverse order of removal.
