2018 Kia Niro Plug-In Hybrid EXFACTORY OEM SERVICE PROCEDURE

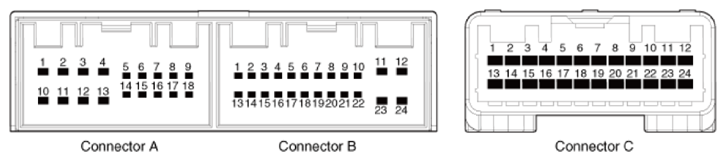

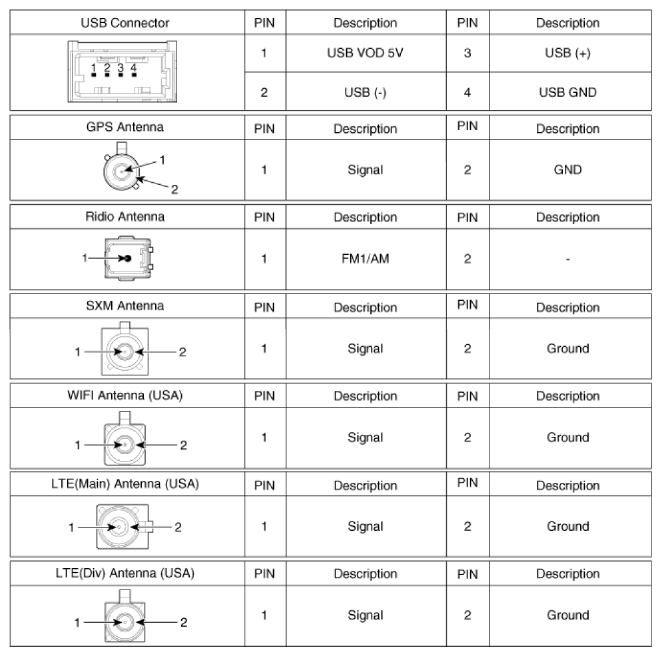

Connector Pin Information
WARNING: This page is about a different car, the 2019 Hyundai Ioniq, 2018 Hyundai Ioniq, and 2017 Hyundai Ioniq. However, it is still accessible from the selected car via links, so may be relevant.
| No | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | - | MM CAN (High) | P CAN (Low) |
| 2 | - | - | P CAN (High) |
| 3 | - | - | - |
| 4 | - | Steering wheel remote controller | - |
| 5 | SPDIF (Ground) | - | IGN3 WAKEUP |
| 6 | SPDIF (High) | MTS Switch | - |
| 7 | - | - | - |
| 8 | Illumination (+) | AUX Audio (Right) | - |
| 9 | - | AUX Audio ground (Shield) | - |
| 10 | - | Mic signal (+) | - |
| 11 | - | Battery (+) | B CAN (High) |
| 12 | - | Battery (+) | B CAN (Low) |
| 13 | - | MM CAN (Low) | - |
| 14 | IGN3 | - | - |
| 15 | SPDIF (Low) | - | - |
| 16 | - | Speed | Navigation amp (-) |
| 17 | Illumination (-) | Steering wheel remote controller ground | Navigation amp (+) |
| 18 | Antenna power | ACC | - |
| 19 | - | - | |
| 20 | AUX Detect | - | |
| 21 | AUX Audio (Left) | Camera shield ground | |
| 22 | Mic signal (-) | Camera video ground | |
| 23 | Ground | Camera video | |
| 24 | Ground | Camera power |
