2018 Kia Niro Plug-In Hybrid EXFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Removal

Disconnect the negative (-) battery terminal.

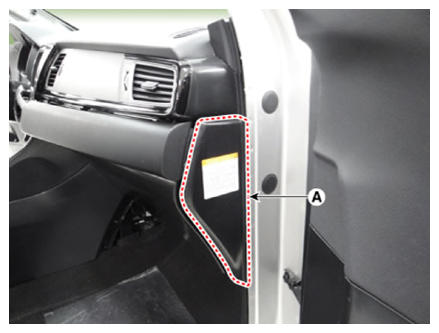

Remove the crash pad side cover [RH] (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the crash pad plate [RH] (A) after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.

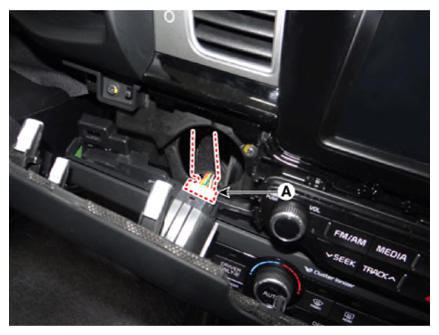

Disconnect the start/stop button connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

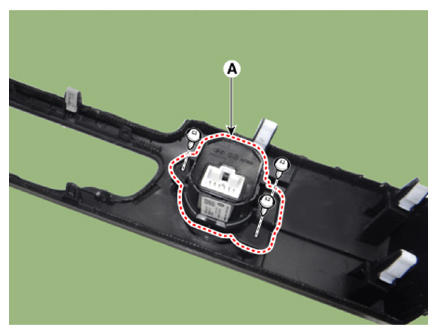

Remove the start/stop button (A) after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.
