Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

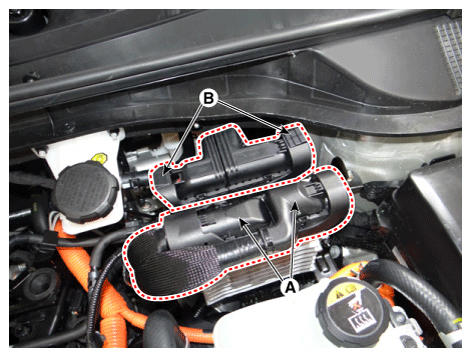

- Disconnect the TCM connectors (A).
- Disconnect the ECM connectors (B).

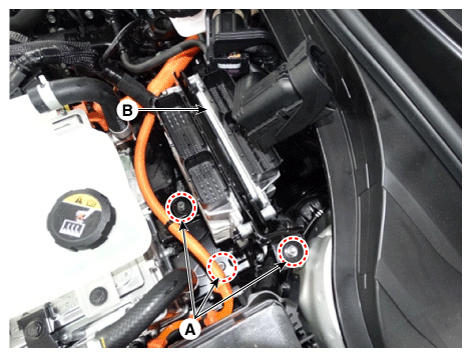

- Remove the ECM & TCM bracket (B) after loosening the mounting nuts (A).
ECM & TCM Bracket Mounting Nut:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

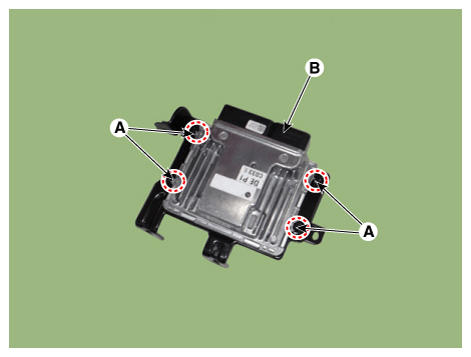

- Remove the ECM (B) after loosening the mounting nuts (A) from the ECM & TCM bracket.
