2018 Kia Forte EXFACTORY OEM SERVICE PROCEDURE

System Block Diagram

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

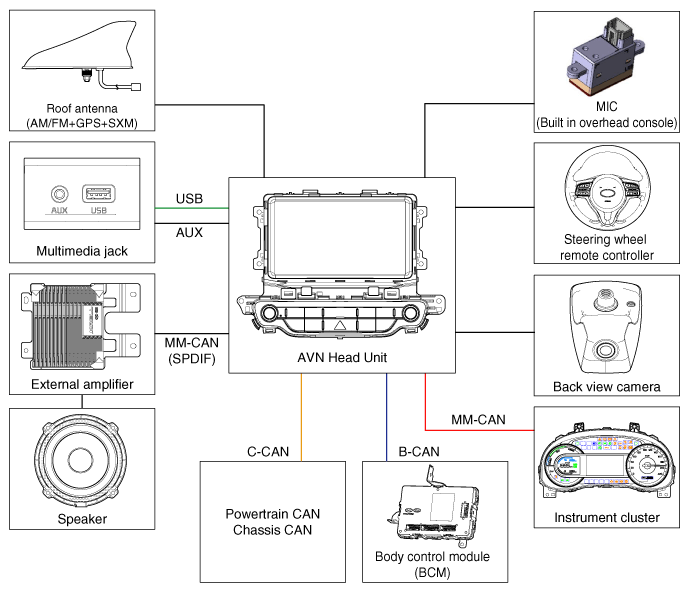

Fig 1: AVN System Block Diagram

Courtesy of KIA MOTORS AMERICA, INC.

B-CAN: Body Controller Area Network
MM-CAN: Multi-Media Controller Area Network
