2018 Kia Forte EXFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Be careful not to scratch the center fascia upper panel and related parts.
- Wrap the protective tape on the tool to disassemble with the screwdriver or remover.
- Take caution when keeping and handling during disassembly/assembly as it is easily contaminated by lubricant and oil.
- Disconnect the negative (-) battery terminal.
- Remove the center fascia upper panel.
(Refer to Body - "CENTER FASCIA PANEL ")

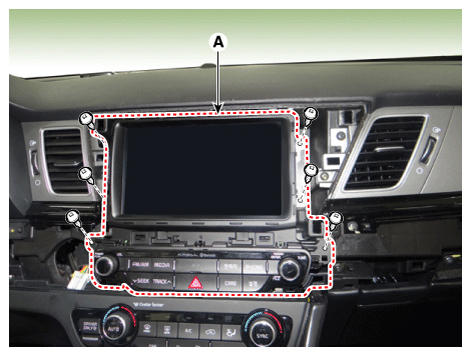

- Remove the AVN head unit (A) after loosening the mounting screws.

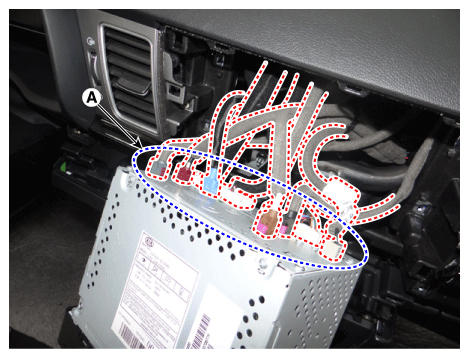

- Remove the AVN head unit after disconnecting the connectors and antenna cable (A).

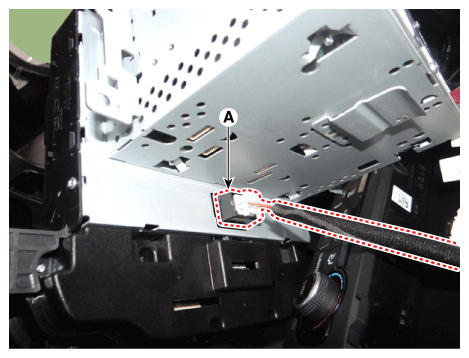

- Disconnect the hazard switch connector (A).
