2018 Kia Forte EXFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Inspection

Disconnect the ignition switch connector (B) and key warning switch connector (A) from the steering column.

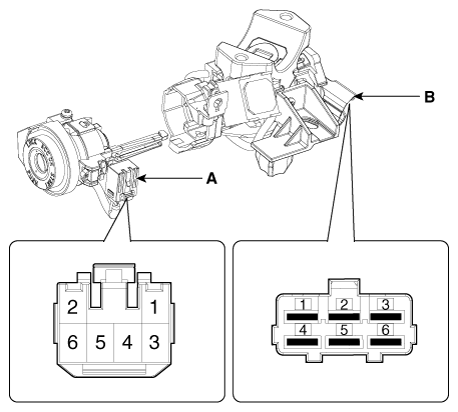

Fig 1: Disconnecting Ignition Switch Connector And Key Warning Switch Connector From Steering Column
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between the terminals.
If continuity is not specified, replace the switch.

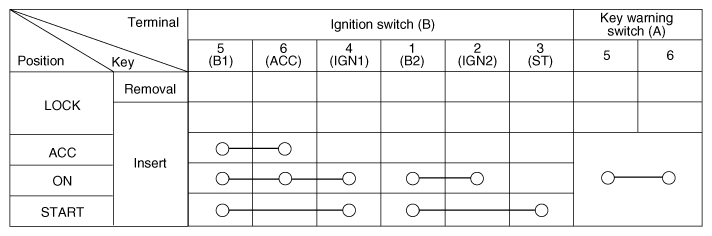

Fig 2: Ignition Switch Connector Terminals Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
