2017 Kia Soul Base, Automatic TransFACTORY OEM SERVICE PROCEDURE
Assist Power Window Switch Inspection
- Disconnect the negative (-) battery terminal.
- Remove the front door trim panel.
(Refer to Body - "FRONT DOOR TRIM ")
- Disconnect the connector (A) from the switch.

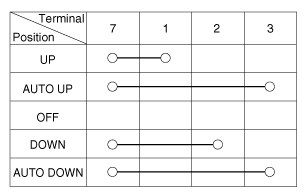

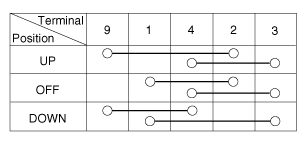

- Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
