2017 Kia Optima SXFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Removal

Turn the ignition switch off and disconnect the battery (-) terminal.
Remove the RCV control solenoid valve.
(Refer to Engine Control System - "RCV Control Solenoid Valve ")
Remove the purge control solenoid valve.
(Refer to Engine Control System - "Purge Control Solenoid Valve ")
Disconnect the variable charge motion actuator connector (A).
Remove the variable charge motion actuator mounting bolts (B).

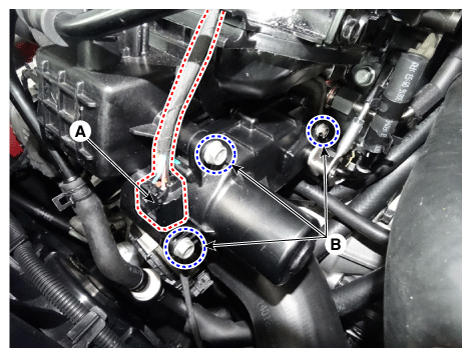

Fig 1: Removing Variable Charge Motion Actuator Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove VCMA rod clip (A) and connection link between flap (B) using screwdriver.

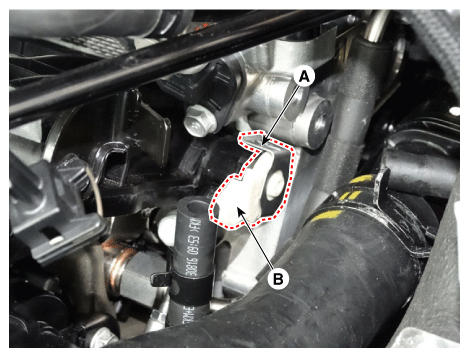

Fig 2: Removing VCMA Rod Clip
Courtesy of KIA MOTORS AMERICA, INC.
