Repair Procedures: Removal
- Shift the gear to "N".

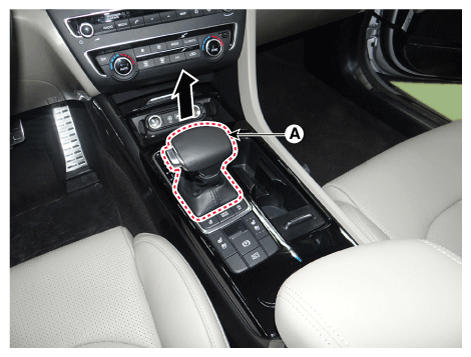

- Remove the knob & boots (A) by pulling it in the direction of arrow after removing the boots from the console upper cover.
- Remove the floor console assembly.
(Refer to Body "FLOOR CONSOLE ")

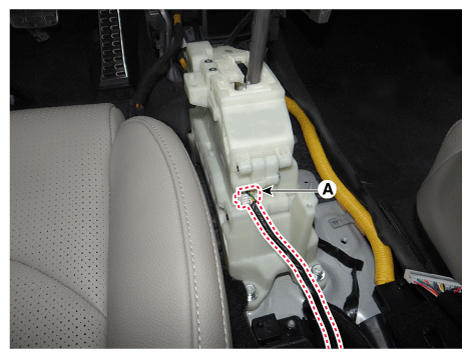

- Disconnect the main connector (A).
- Remove the shift cable after separating the snap pin (A).

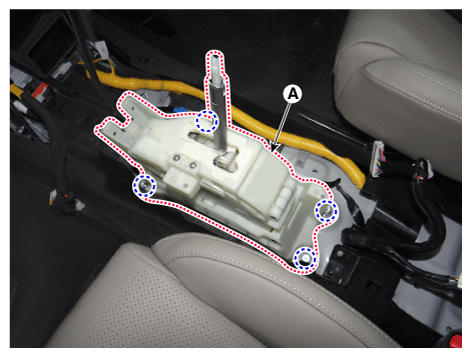

- Remove the shift lever assembly (A).
Tightening Torque:
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)
