2017 Kia Optima Plug-In Hybrid EXFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Disassembly
- Disconnect the battery negative cable.
- Remove the steering wheel assembly.
(Refer to Steering System -"Steering Wheel")Repair procedures

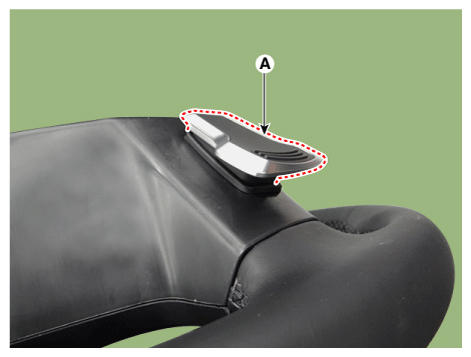

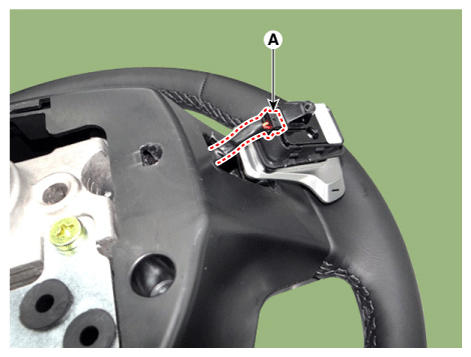

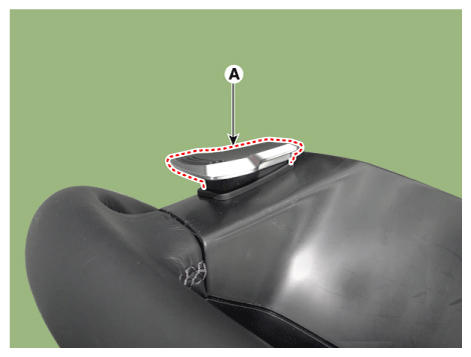

- Loosen the screw and then remove the paddle shift switch (A).
[LHS]
[RHS]

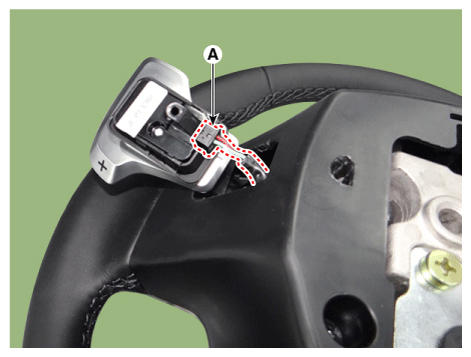

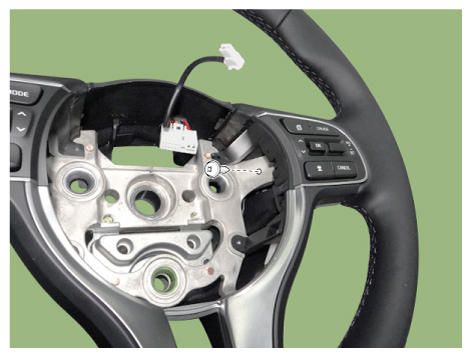

- Remove the paddle switch connector (A).
[LHS]
[RHS]

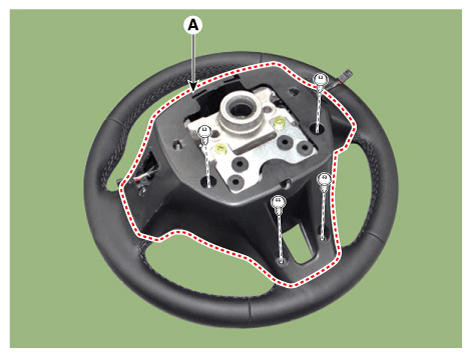

- Remove the steering back cover (A).

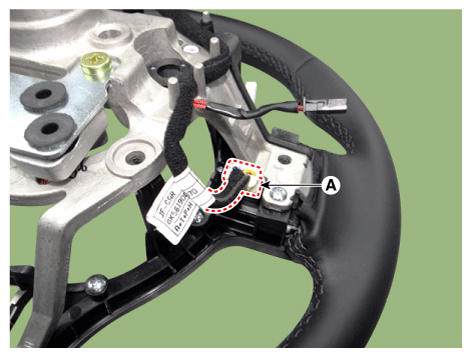

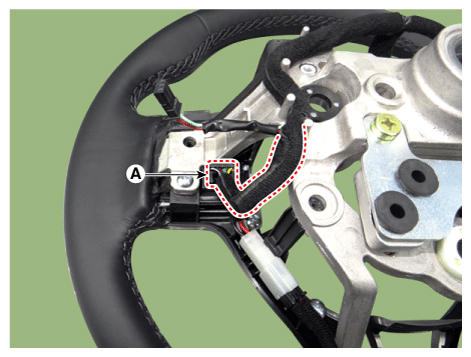

- Disconnect the connector (A) from the steering wheel remote control.
[LHS]
[RHS]

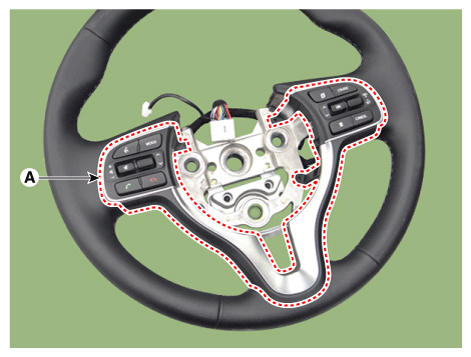

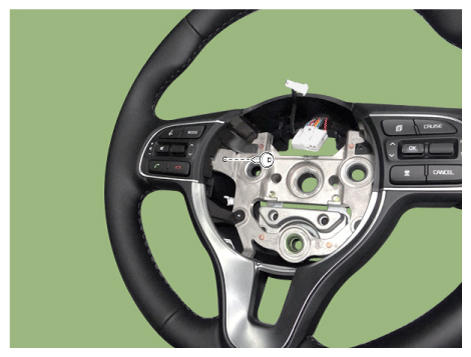

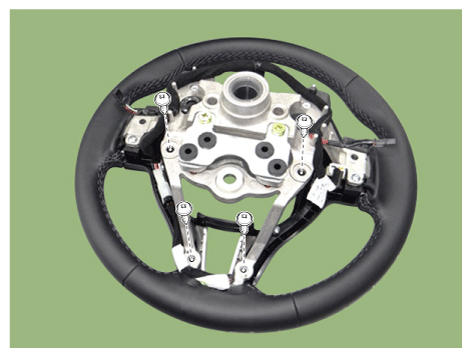

- Loosen the screw and then remove the steering wheel remote control (A).

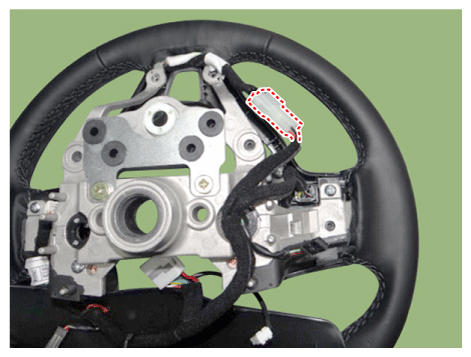

- Disconnect the heated connector and then remove the heated wire.

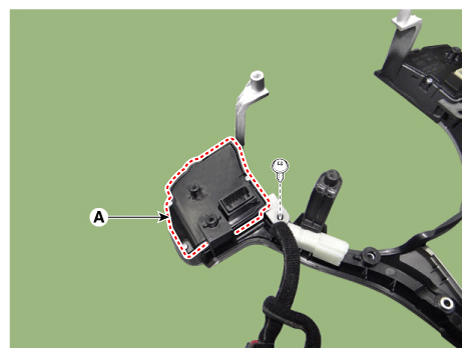

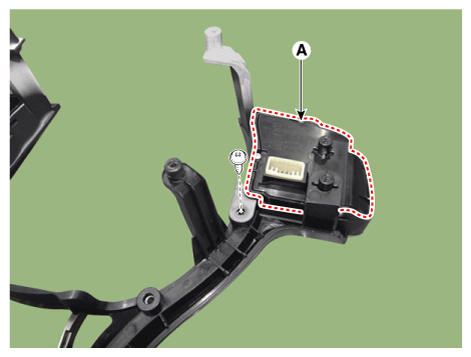

- Loosen the screw and then remove the steering wheel remote control (A).
[LHS]
[RHS]
- Install in the reverse order of removal.
