Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.

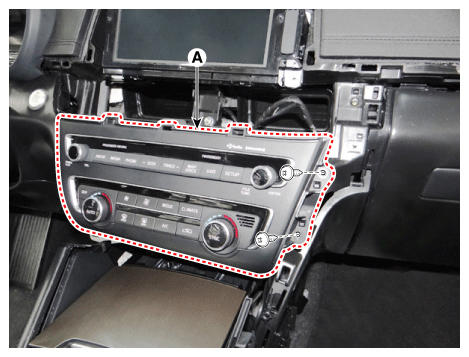

- Remove the center fascia lower panel (A) after loosening the mounting screws.
(Refer to Body - "CENTER FASCIA PANEL ")

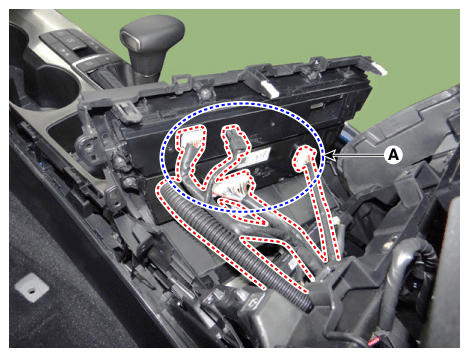

- Remove the center fascia lower panel after disconnecting the connectors (A).

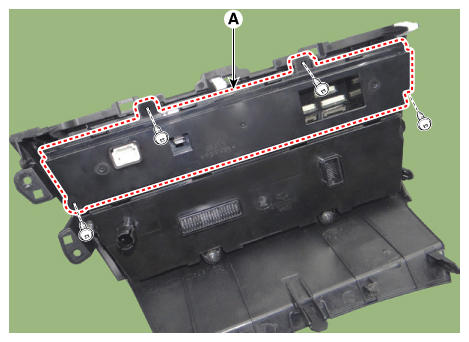

- Remove the AVN keyboard unit (A) after loosening the mounting screws.
