2017 Kia Optima Plug-In Hybrid EXFACTORY OEM SERVICE PROCEDURE
Components and Components Location: Components
WARNING: This page is about a different variant/trim than selected.

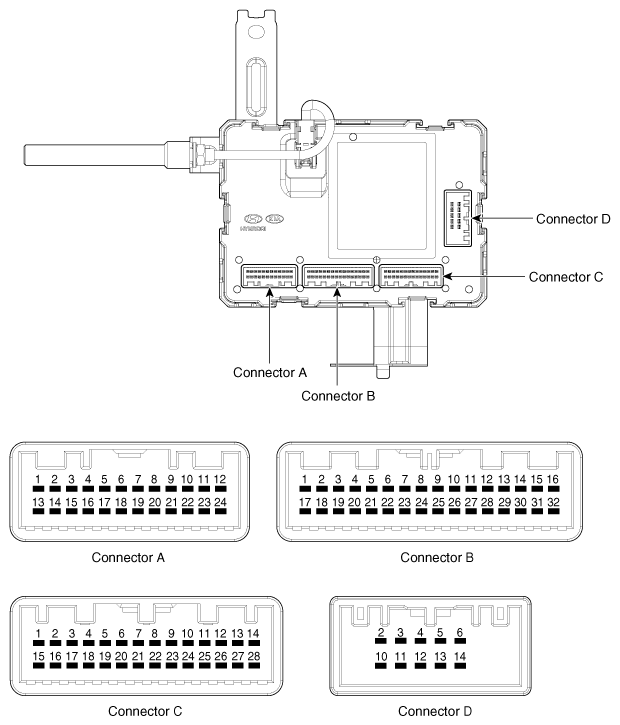

Connector Pin Information
| No. | Connector A | Connector B | Connector C | Connector D |
|---|---|---|---|---|
| 1 | Auto light power | LIN_Safety power down ECU | Front wiper low relay | - |
| 2 | Diagnosis_COM | - | Front wiper low back up switch | IGN1 |
| 3 | - | Key IN switch | Wiper ON relay | Room lamp |
| 4 | Heated handle indicator | Rear wiper washer switch | Rear wiper relay | Heated handle power |
| 5 | PAS ON indicator | Front wiper washer switch | Mirror unfold relay | IGN2_Heated handle power |
| 6 | Safety ECU Enable | Heated handle switch | Head lamp washer relay | Power_ground |
| 7 | Rear right seat belt indicator | Brake switch | - | - |
| 8 | - | - | Fog lamp switch | - |
| 9 | - | Key inter lock switch | Multifunction light switch | - |
| 10 | - | Sunroof open switch | - | Battery (+) |
| 11 | AST seat belt indicator | - | - | - |
| 12 | Pocket lamp | PAS (option) switch | Front wiper INT volume | RPAS power |
| 13 | Key hole illumination | PAS ON switch | Front wiper switch | FPAS power |
| 14 | ATM solenoid | Side airbag (option) | - | Ground_signal |
| 15 | KEY solenoid | Rear defogger switch | Front wiper high relay | - |
| 16 | Foot lamp | Blade position_Low | - | - |
| 17 | Auto light ground | Multifunction switch_ground | AV Tail | |
| 18 | Door lock indicator | C_CAN (High) | Mirror fold relay | |
| 19 | - | C_CAN (Low) | Rear fog lamp relay | |
| 20 | Security indicator | B_CAN (Low) | NTC_ground | |
| 21 | Rear center seat belt indicator | B_CAN (High) | Head lamp high switch | |
| 22 | - | - | Rear wiper switch | |
| 23 | - | LIN_Intrusion protection system | ACC IN | |
| 24 | Rear left seat belt indicator | LIN_Rain sensor | IGN2 | |
| 25 | LIN_PAS | - | ||
| 26 | - | Auto light sensor | ||
| 27 | Window lock switch | NTC sensor | ||
| 28 | - | Crash signal | ||
| 29 | - | |||
| 30 | - | |||
| 31 | - | |||
| 32 | - |
