Repair Procedures: Inspection
- Connect the KDS/GDS to the vehicle's data link connector (DLC).
- Check any DTCs and if exist, repair according to the DTC guide.

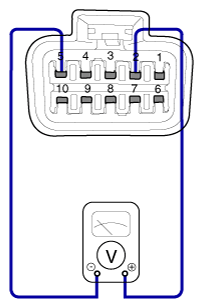

- Check the power supply voltage provided to the fuel pressure sensor (FPS).
Specification: 5V
- Check the voltage provided to the fuel pressure sensor (FPS) at idle.
Specification: 1.9 - 3.2 V
- Check the fuel pressure in the low fuel line.
(Refer to Fuel Delivery System - "FUEL PRESSURE TEST ")
Items Specification start Max. 600 KPa (Max. 6.1 kgf/cm2 , Max. 87.0 psi) in operation 350 - 500 KPa (3.5 - 5.1 kgf/cm2 , 50.7 - 72.5 psi)
