Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the air duct and air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

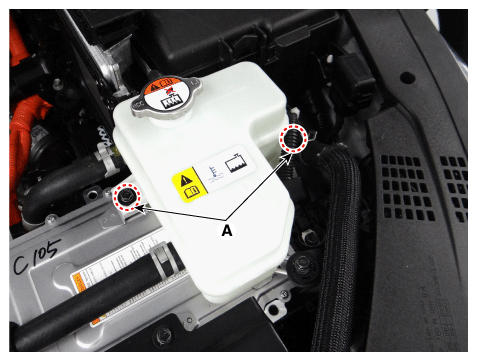

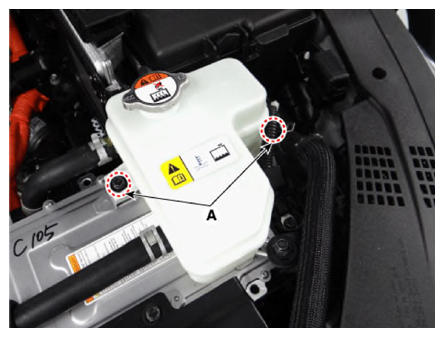

- Remove the reservoir mounting bolts (A).
Reservoir mounting bolt:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

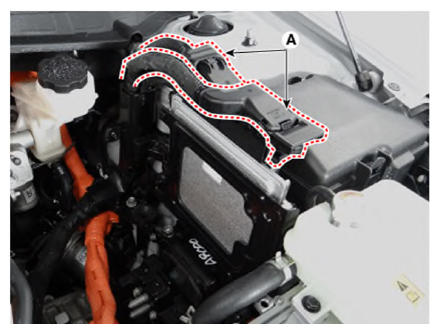

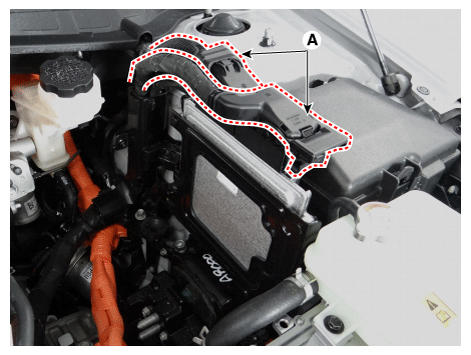

- Disconnect the ECM connector (A).

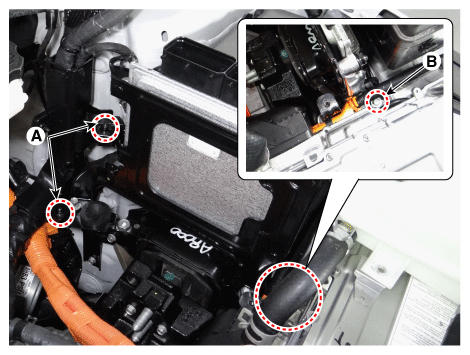

- Remove the ECM bracket assembly after loosening the mounting nuts (A) and bolts (B).
ECM bracket assembly mounting nut/bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

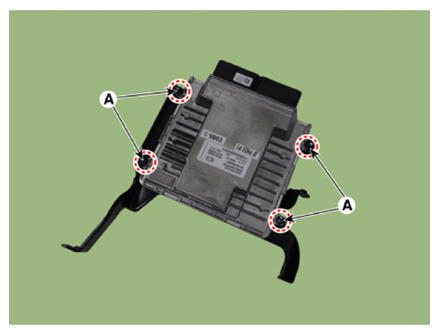

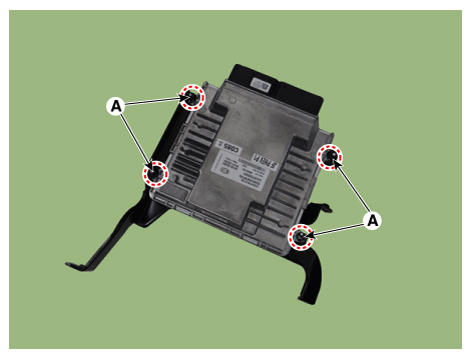

- Remove the ECM after loosening the mounting nuts (A).
