2017 Kia Optima Plug-In Hybrid EXFACTORY OEM SERVICE PROCEDURE

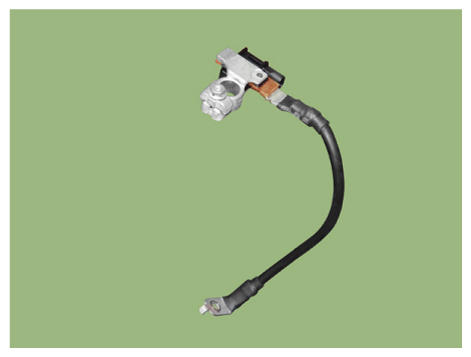

Repair Procedures: Removal
- Open the trunk.
- Remove the luggage side trim [RH] side cover.

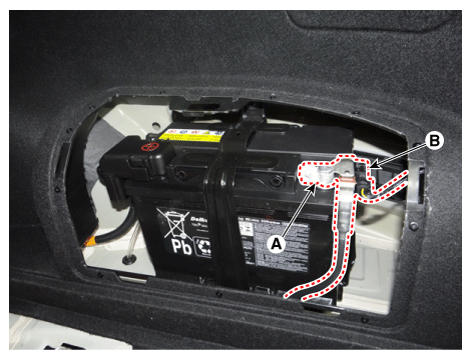

- Turn ignition switch OFF and disconnect the battery negative (-) terminal (A).
- Disconnect the battery sensor connector (B).
Battery (-) Terminal Tightening Nut:
7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.2 - 8.7 lb.ft)

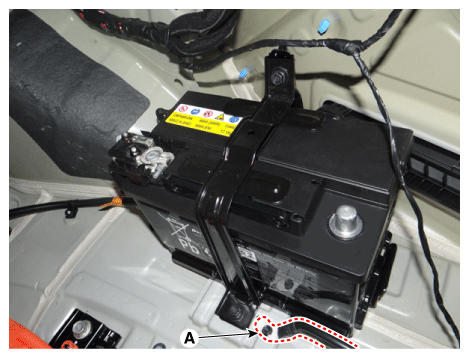

- Remove the battery sensor by loosening the mounting bolt (A).
Battery Sensor Cable Flange Mounting Bolt (Chassis Ground):
10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb.ft)
