2017 Kia Optima Plug-In Hybrid EXFACTORY OEM SERVICE PROCEDURE
Rear Power Window Switch
- Disconnect the negative (-) battery terminal.
- Remove the rear door trim.
(Refer to Body - "REAR DOOR TRIM ")

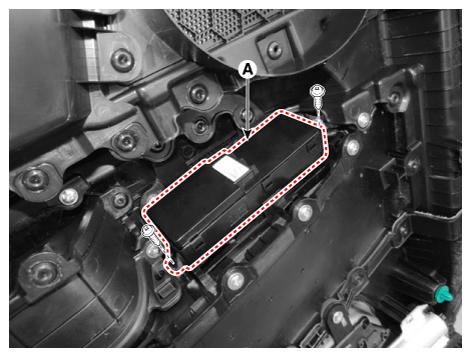

- Loosen the power window switch assembly mounting screws.

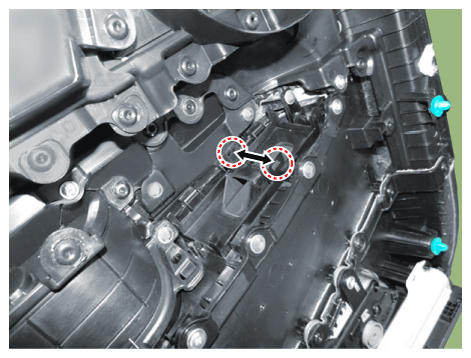

- Remove the power window switch assembly (A) after disengaging the mounting clips.
Information
- Replace any damaged clips.
