2017 Kia Optima Plug-In Hybrid EXFACTORY OEM SERVICE PROCEDURE
Front Power Window Motor
- Disconnect the negative (-) battery terminal.
- Remove the front door trim.
(Refer to Body - "FRONT DOOR TRIM ")

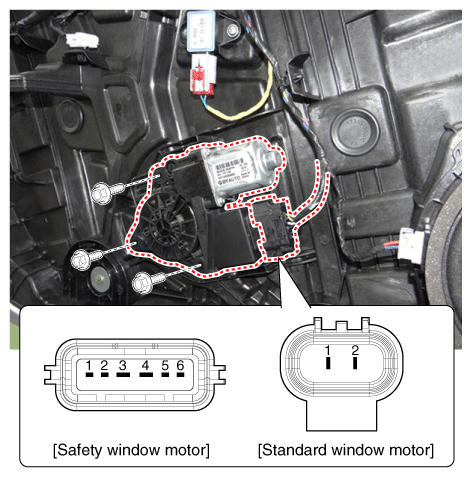

- Disconnect the motor connector from the motor.
- Connect the terminals No. 2 and No. 3 to battery voltage (12V) and check that the motor operates smoothly when connecting the terminals below.

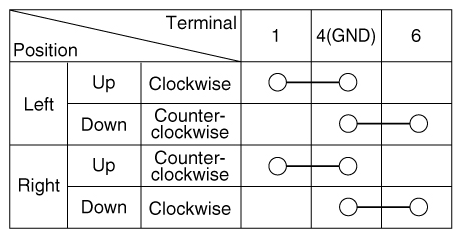

[Safety Window Motor]
- Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.

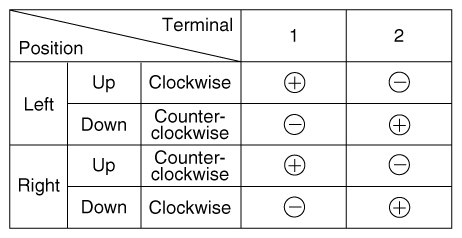

[Standard Window Motor]
