2017 Kia Optima Plug-In Hybrid EXFACTORY OEM SERVICE PROCEDURE

Trunk Open Switch

Disconnect the negative (-) battery terminal.
Remove the trunk lid trim.
(Refer to Body - "TRUNK LID TRIM ")

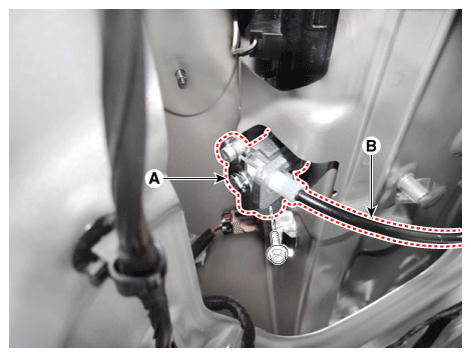

Remove the trunk lid key holder (A) after loosening the mounting bolt.
Disconnect the key holder cable (B).

Courtesy of KIA MOTORS AMERICA, INC.

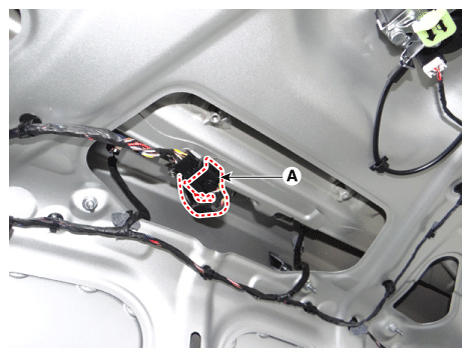

Disconnect the trunk open switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

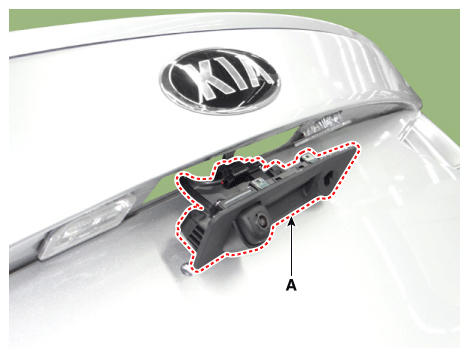

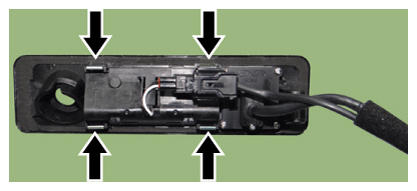

Remove the trunk open switch assembly (A) after disengaging mounting clips.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
