Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the rear seat cushion.
(Refer to Body - "REAR SEAT ASSEMBLY ")

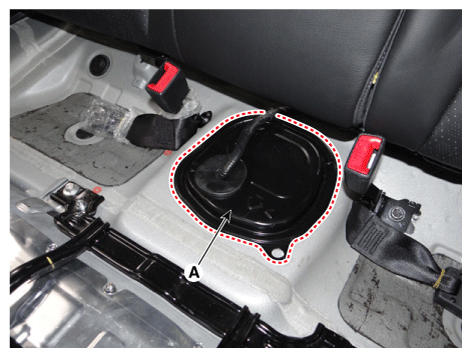

- Fuel pump service cover (A).

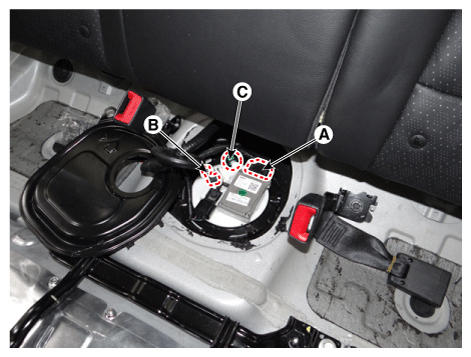

- Remove the fuel pump control module connector (A).
- Disconnect the fuel pressure sensor connector (B).
- Disconnect the fuel feed tube quick-connector.(C).

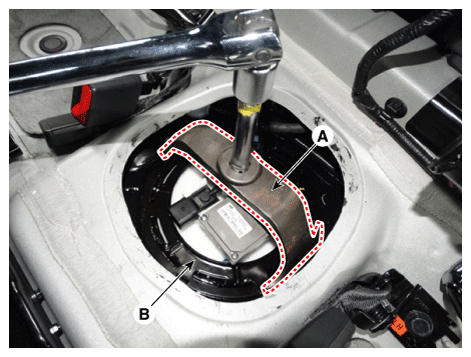

- Remove the fuel pump plate cover (B) by using the special service tool (A) [SST NO.:09310-B8100].
- Remove the fuel pump (A).
