2017 Kia Forte5 SX, Standard TransFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Removal

Turn ignition switch OFF and disconnect the battery negative (-) terminal.

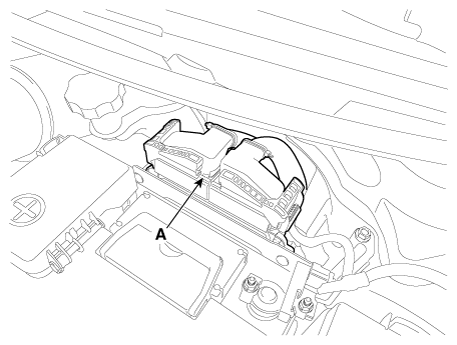

Disconnect the ECM Connector (A).

Fig 1: ECM Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the battery (Refer to "CHARGING SYSTEM " ).

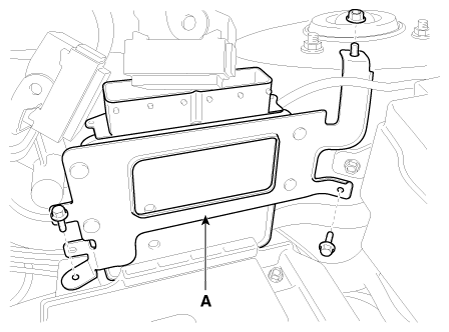

Remove the mounting bolts and nut, and then remove the ECM assembly (A).

Fig 2: ECM Assembly With Mounting Bolts And Nut
Courtesy of KIA MOTORS AMERICA, INC.

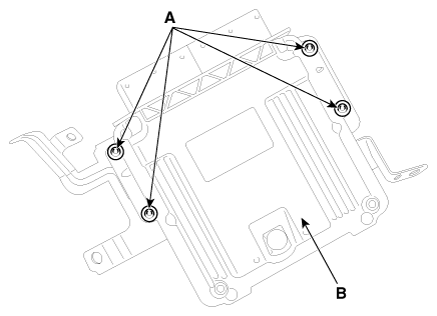

Remove the ECM (B) after removing 4 nuts (A) from the bracket.

Fig 3: ECM With Nuts
Courtesy of KIA MOTORS AMERICA, INC.
