2017 Kia Forte LX, Standard TransFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Removal

  1. Remove the floor console assembly.

    (Refer to Body "FLOOR CONSOLE ")

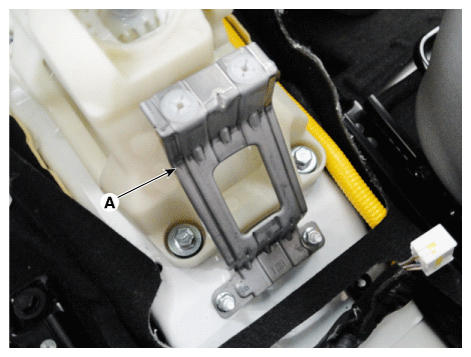

  2. Remove the cover (A).
    Fig 1: Locating Cover
    G12162273Courtesy of KIA MOTORS AMERICA, INC.

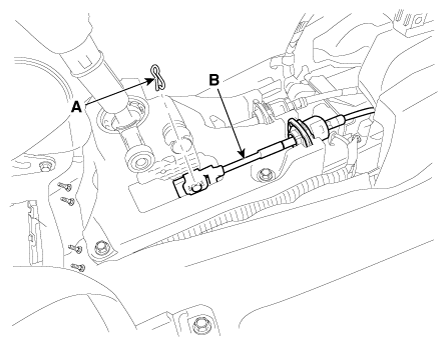

  3. Remove the select cable (B) by removing the snap pin (A).
    Fig 2: Locating Select Cable And Snap Pin
    G12162274Courtesy of KIA MOTORS AMERICA, INC.

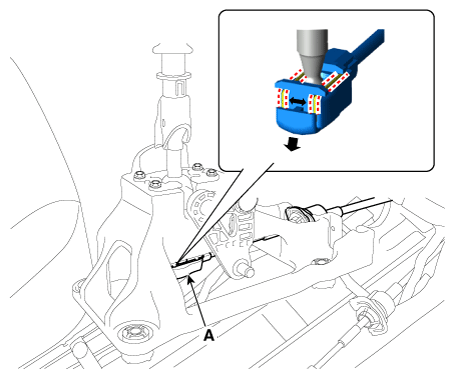

  4. Remove the shift cable (A).
    Fig 3: Locating Shift Cable
    G12162275Courtesy of KIA MOTORS AMERICA, INC.

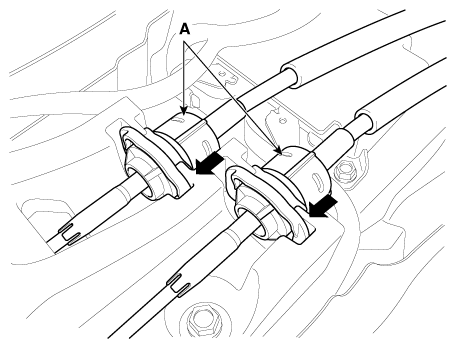

  5. Remove the control cable socket (A).
    Fig 4: Removing Control Cable Socket
    G12162276Courtesy of KIA MOTORS AMERICA, INC.

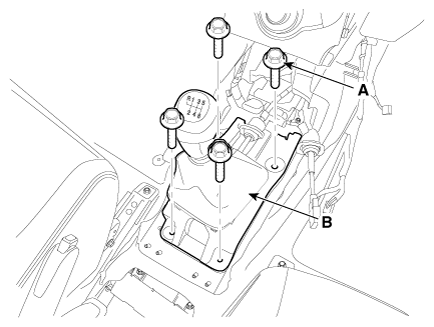

  6. Remove the shift lever assembly (B) by removing the bolts (A).

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

    Fig 5: Locating Shift Lever Assembly And Bolts
    G12162277Courtesy of KIA MOTORS AMERICA, INC.

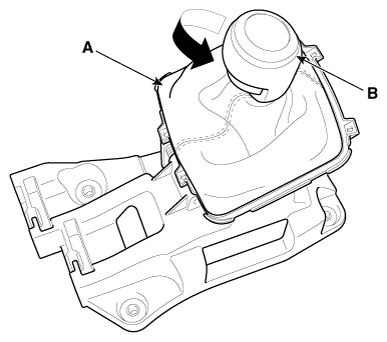

  7. Remove the knob (B) and boots (A) by rotating it counter-clockwise.
    Fig 6: Removing Knob And Boots
    G12162278Courtesy of KIA MOTORS AMERICA, INC.
