Repair Procedures: Removal
- Shift the gear to "3rd".
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
- Remove the shift & select cable.

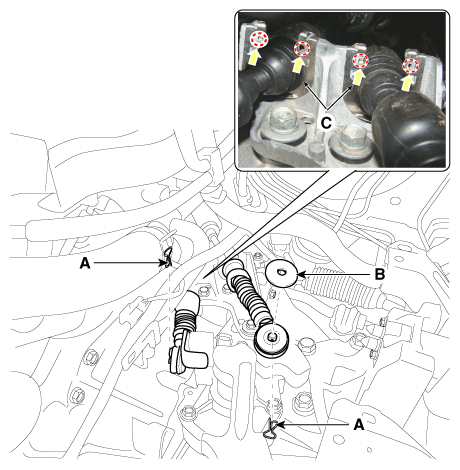

- Remove the pin (A) and washer (B).
- Make unlock clip (C) and then remove the shift & select cable and the clip (C) from the bracket.
- Remove the floor console assembly.
(Refer to Body "FLOOR CONSOLE ")

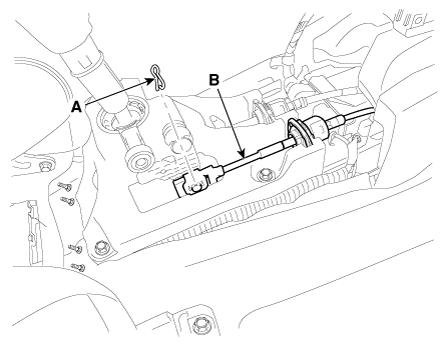

- Remove the select cable (B) by removing the snap pin (A).

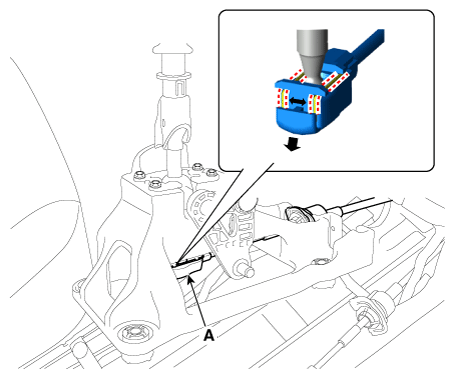

- Remove the shift cable (A).

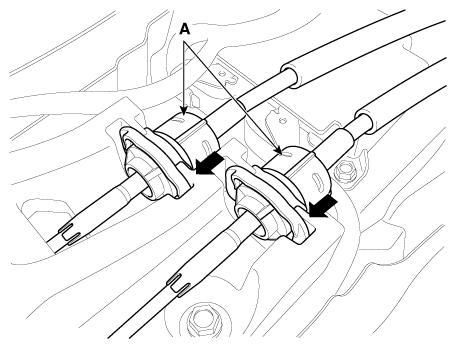

- Remove the control cable socket (A).

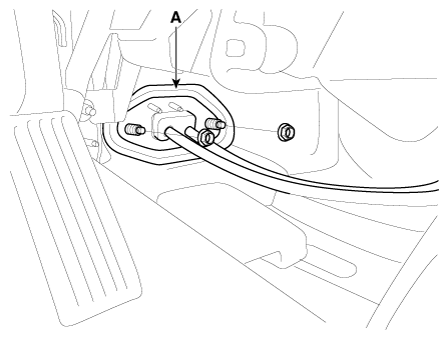

- Remove the shift cable retainer (A) after loosening the nuts. Then, remove the shift cable by pulling it toward the vehicle interior.
