Repair Procedures: Replacement: Notes
- Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
- Turn the steering wheel so that the front wheels can face straight ahead.
- Remove the airbag module.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

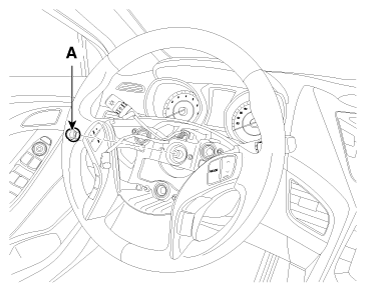

- Disconnect the connector & lock nut (A) and then remove the steering wheel (B) by using special service tools (09561-11001).
Tightening torque:
39.2 - 44.1 N.m (4.0 - 4.5 kgf.m, 28.9 - 32.5 lb.ft)
