Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the heater & A/C control unit.
(Refer to Heating, Ventilation, Air Conditioning - "HEATER & A/C CONTROLLER UNIT (MANUAL) )
(Refer to Heating, Ventilation, Air Conditioning - "HEATER & A/C CONTROLLER UNIT (DATC ))
- Remove the floor console assembly.

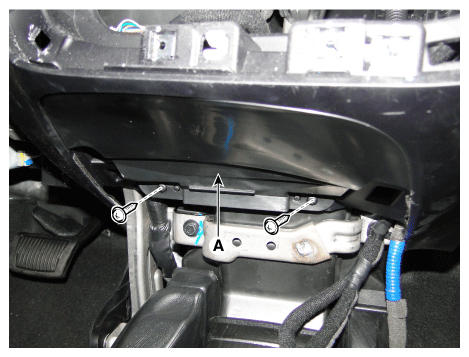

- Remove the center lower cover (A) after loosening the screws.

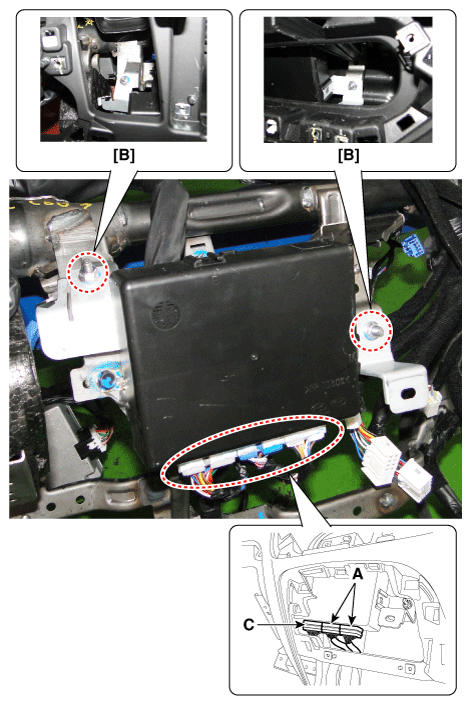

- Remove the BCM unit. (in the order as below)
- Disconnect the connectors (A) from the BCM unit.
- Loosen the mounting nuts (B).
- Remove the BCM unit (D) after disconnecting the connector (C) from the BCM unit.
