2017 Kia Forte EXFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Information

Be careful as the Liftgate may fall down on people when the lifts are removed. Have a helper hold the Liftgate open, or use a secure method to hold it open.

Using a screwdriver (A), lift up slightly the socket clips (B) of both ends on the lifter (D), and then remove the lifter from the bracket (C).

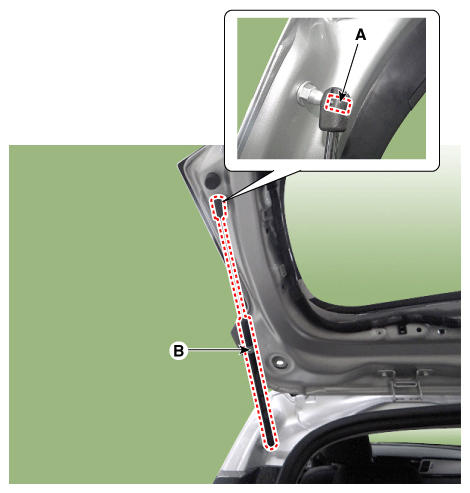

Fig 1: Lifting Up Slightly Socket Clips Using Screwdriver
Courtesy of KIA MOTORS AMERICA, INC.
Push the socket of the lifter into the bracket for installation.
Information

Make sure the Liftgate locks and opens properly and locks securely.
