2017 Kia Forte EXFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Put on gloves to protect your hands.

Information

  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Be careful not to bend or scratch the trim and panels.
  1. Remove the Liftgate trim.

    (Refer to Liftgate - "LIFTGATE TRIM ")

  2. Disconnect the Liftgate latch connector (A).

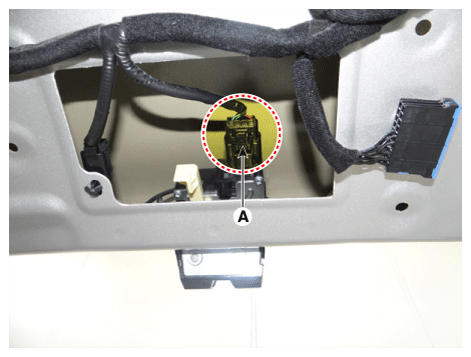

    Fig 1: Locating Liftgate Latch Connector
    G12332115Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the Liftgate latch assembly (B) after loosening the mounting bolts (A).

    Tightening Torque:

    10.8 - 11.8 N.m (1.1 - 1.2 kgf.m, 8.0 - 8.7 lb.ft)

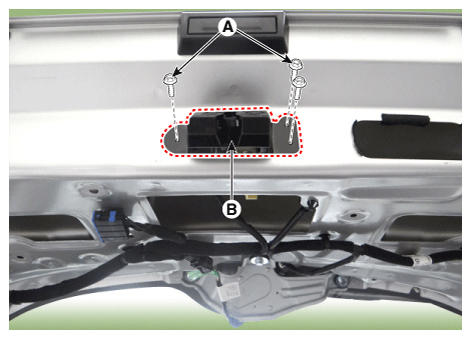

    Fig 2: Removing Liftgate Latch Assembly Mounting Bolts
    G12332116Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.

Information

  • Make sure that the Liftgate locks/unlocks and opens/closes properly.
  • Adjust the Liftgate alignment.
  • Make sure the connectors are connected in properly.
