Install the timing chain.
Crankshaft sprocket → Intake CVVT sprocket → Exhaust CVVT sprocket

Install the timing chain with no slack between the crankshaft sprocket and the intake CVVT sprocket.

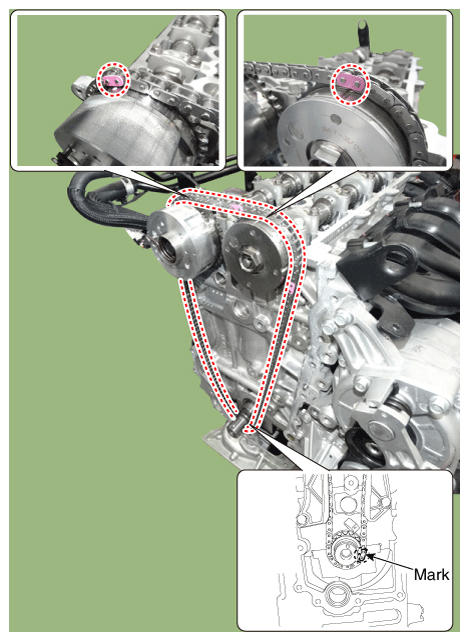

Fig 1: Installing Timing Chain
Courtesy of KIA MOTORS AMERICA, INC.
