2017 Kia Forte EXFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the negative (-) battery terminal.
- Remove the battery. (Refer to Engine Electrical System - "BATTERY ")

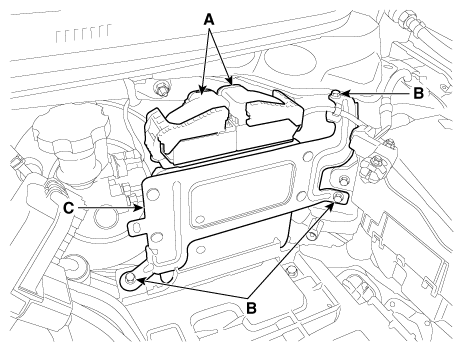

- Disconnect the ECM Connector (A).
- Remove the mounting bolts (B) and then remove the ECM bracket assembly (C).

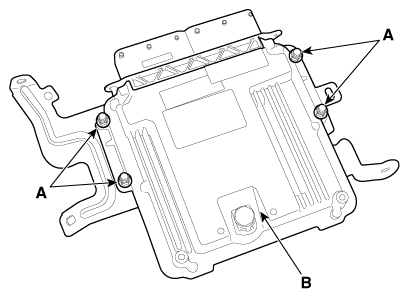

- Remove the mounting nuts (A), and then remove the ECM (B) from the ECM bracket assembly.
