Repair Procedures: Removal
- Shift the gear to "N".
- Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY REMOVAL ")

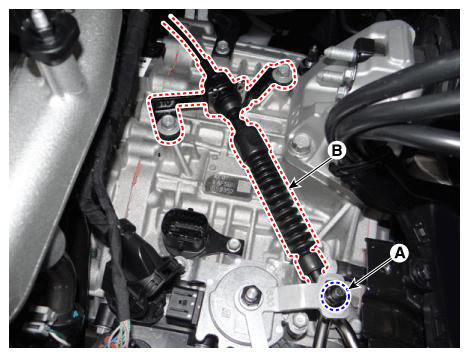

- Remove the shift cable (B) from the bracket after loosening a nut (A).

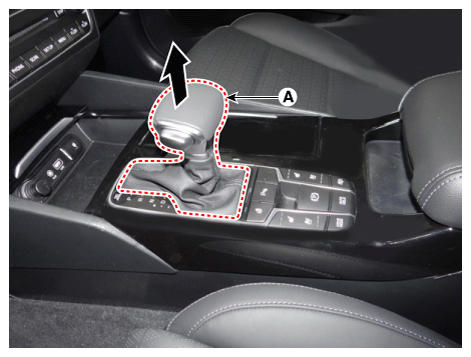

- Remove the knob & boots (A) by pulling it in the direction of arrow after removing the boots from the console upper cover.
- Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ")

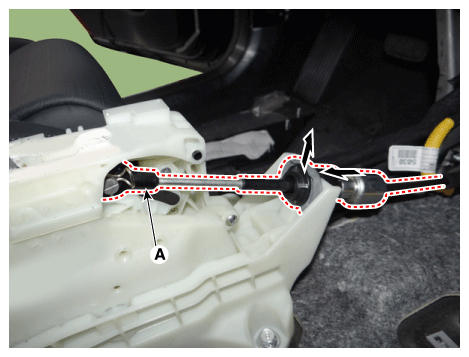

- Remove the shift cable (A) after separating the snap pin.
- Remove the SRS Control Module (SRSCM).
(Refer to Restraint - "SRS CONTROL MODULE ")

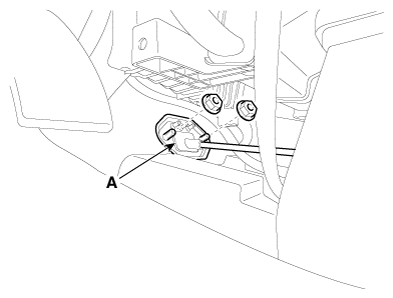

- Remove the shift cable retainer (A) after loosening the nuts. Then, remove the shift cable by pulling it toward the vehicle interior.
