2017 Kia Cadenza TechnologyFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal: Notes
- Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
- Turn the steering wheel so that the front wheels are facing straight ahead.
- Remove the airbag module.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

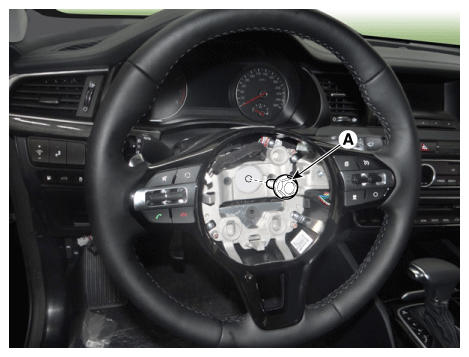

- Remove the lock bolt (A) and remove the steering wheel.
Tightening torque:
44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb.ft)
