2017 Kia Cadenza TechnologyFACTORY OEM SERVICE PROCEDURE

Inspection Component Location: Notes

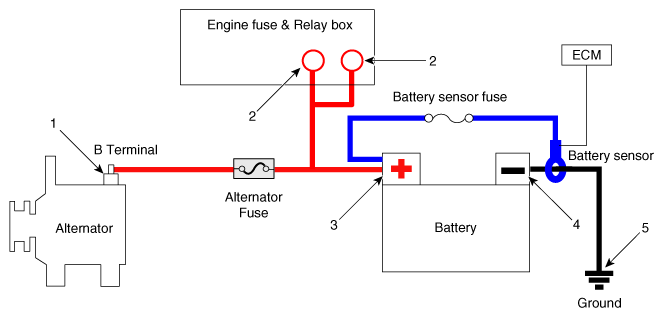

Fig 1: Inspecting Alternator B+ Terminal State

Courtesy of KIA MOTORS AMERICA, INC.

Alternator B+ terminal
Engine room fuse & relay box positive (+) terminal
Battery negative (+) terminal
Battery negative (-) terminal
Chassis ground
