Power Window Main Switch Inspection
- Disconnect the negative (-) battery terminal.
- Remove the front door trim.
(Refer to "FRONT DOOR TRIM .")
- Disconnect the connector (A) from the power window switch module.

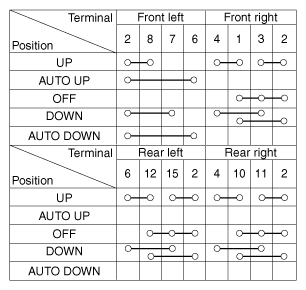

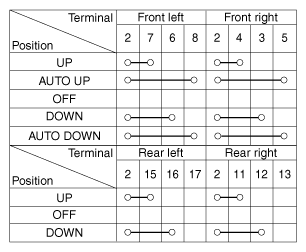

- Check for continuity between the terminals in each switch position according to the table.
[Driver/Assist Safety]
[Driver Auto Down]
