2016 Kia Soul Base, Automatic TransFACTORY OEM SERVICE PROCEDURE

Smart Key Code Saving

  1. Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.
    G11952726Courtesy of

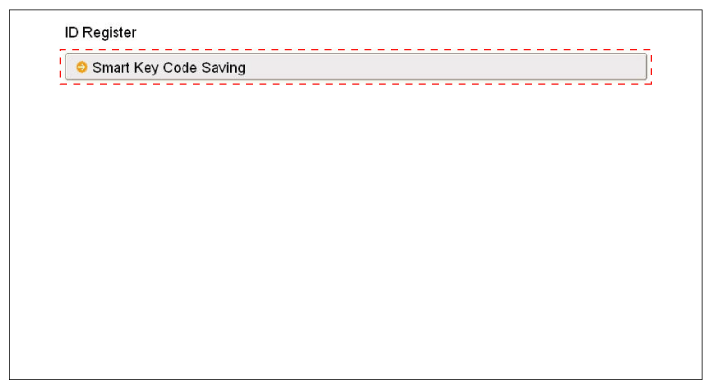

  2. Select the vehicle model and then do "Smart key code saving".
    G11952727Courtesy of

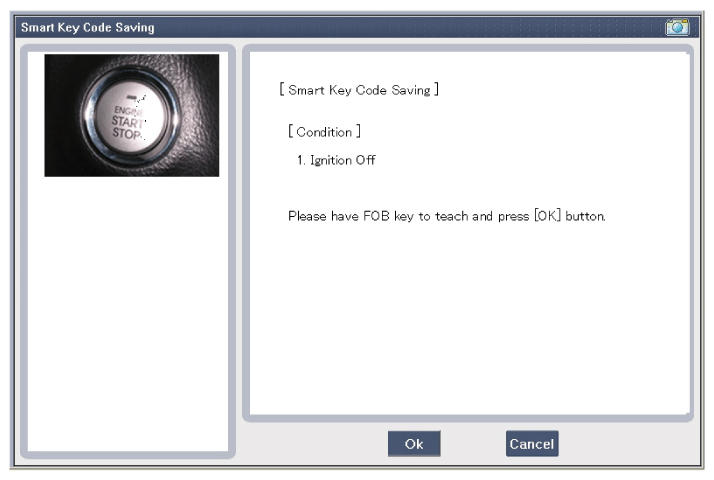

  3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.
    G11952728Courtesy of
  4. After pushing the SSB with the teaching key, press "OK" button.

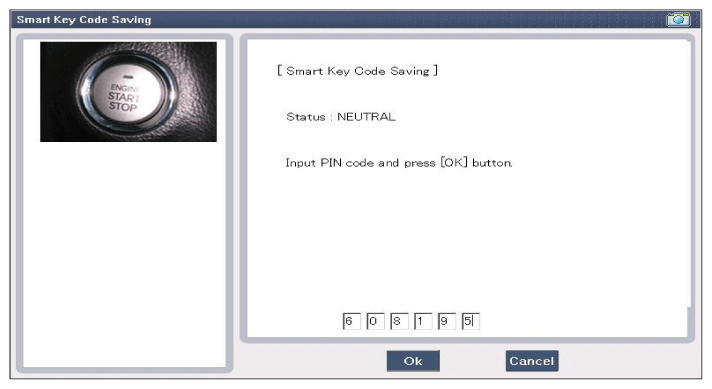

  5. Input the "Pin code" for first key teaching.
    G11952729Courtesy of

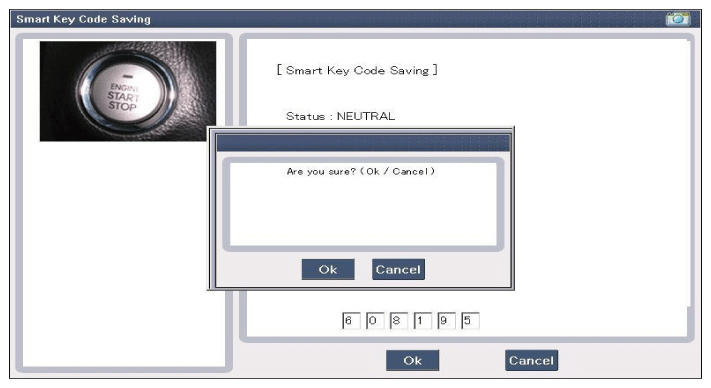

    G11952730Courtesy of
  6. Confirm the message "First key teaching completed".

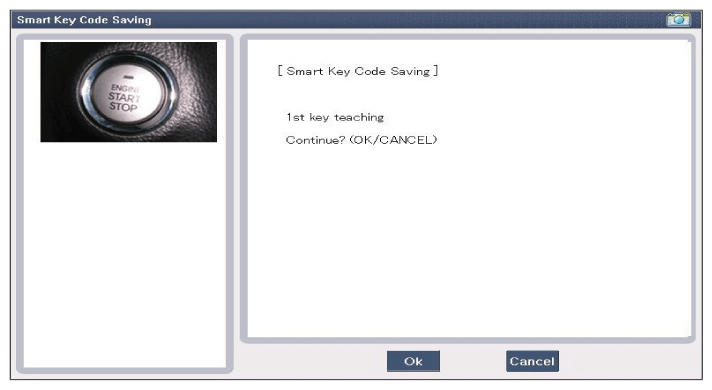

    G11952731Courtesy of
    G11952732Courtesy of

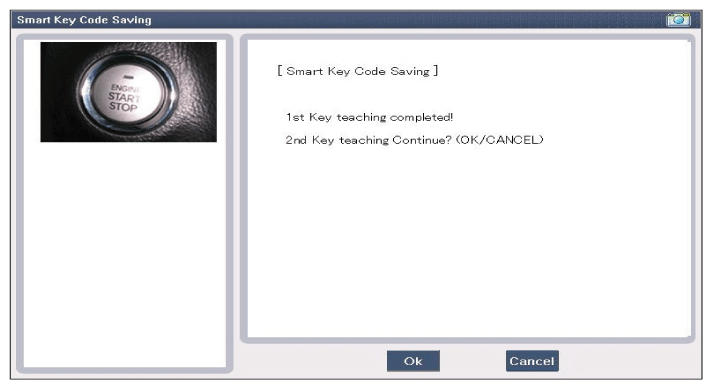

    G11952733Courtesy of

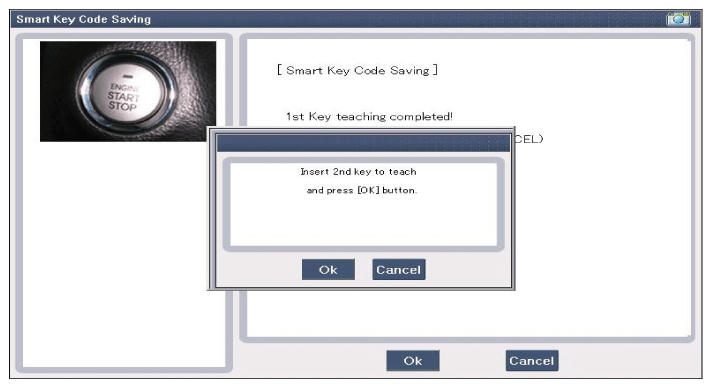

    G11952734Courtesy of
  7. Confirm the message "Second key teaching completed".

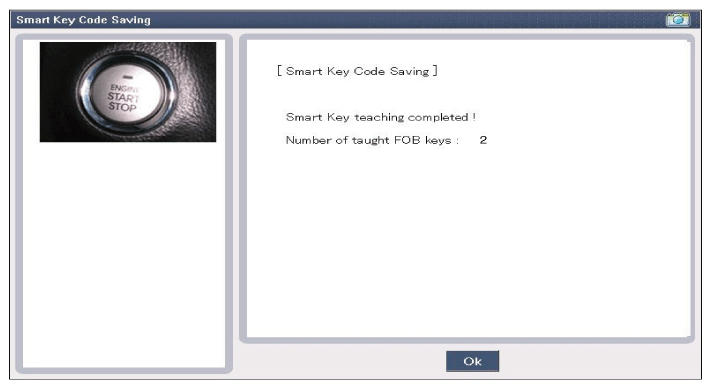

    G11952735Courtesy of
  8. Then the screen will be shown as above when key teaching process is completed.
