2016 Kia Soul !FACTORY OEM SERVICE PROCEDURE
Repair Procedures: Replacement
Shift lock solenoid replacement
- Remove the floor console assembly.
(Refer to "FLOOR CONSOLE .")
- Remove the shift lock solenoid (A) from the shift lever assembly.

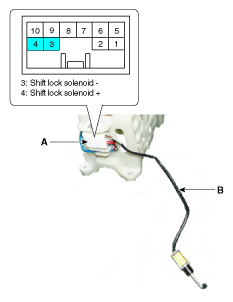

- Disconnect the wiring (B) of shift lock solenoid from the main connector (A).
- Install in the reverse order of removal.
