2016 Kia Soul !FACTORY OEM SERVICE PROCEDURE

Signal Waveform

G11955823Courtesy of
G11955824Courtesy of

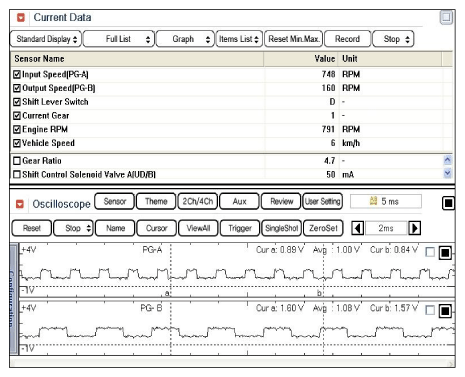

  1. Input/Output speed sensor at low speed

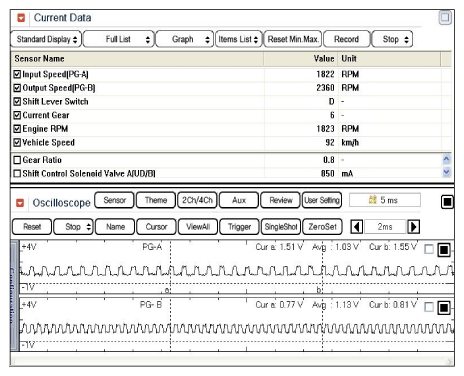

  2. Input/Output speed sensor at high speed
