2016 Kia Sedona EXFACTORY OEM SERVICE PROCEDURE
Components and Components Location: Components
WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

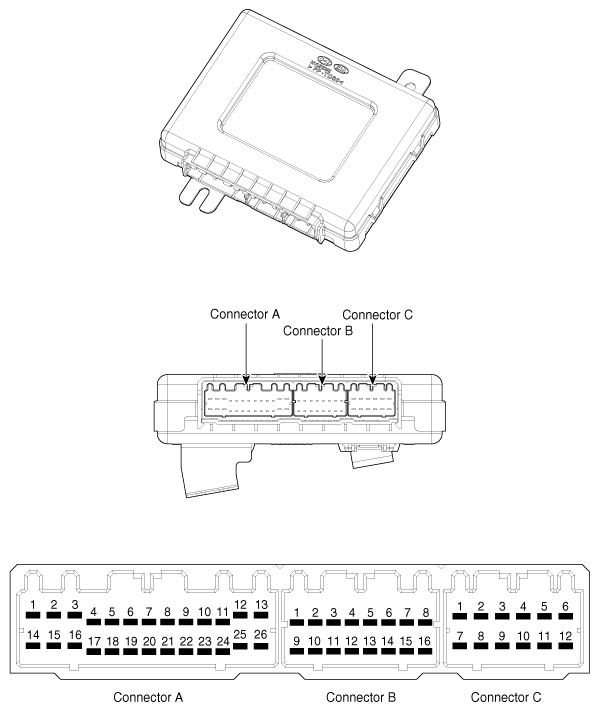

CONNECTOR PIN INFORMATION
| No. | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | Battery | B CAN high | Sunroof |
| 2 | IGN 2 | M CAN high | Head lamp washer |
| 3 | ECM mirror P | C CAN high | Foor lamp |
| 4 | - | ATM solenoid | Burglar horn power |
| 5 | Trunk open switch | PAS ON indicator | Rear curtain down |
| 6 | - | - | Rear curtain up |
| 7 | PAS OFF switch | PAS data | - |
| 8 | Sunroof switch | Front deicer relay | Horn relay |
| 9 | Rear curtain switch | B CAN low | Burglar horn |
| 10 | - | M CAN low | Mood lamp |
| 11 | - | C CAN low | Exterior buzzer |
| 12 | - | Defogger indicator | Rear curtain power |
| 13 | GND 1 | Security indicator | |
| 14 | IGN 1 | Assist seat belt indicator | |
| 15 | ACC | Wiper data | |
| 16 | ECM mirror N | - | |
| 17 | - | ||
| 18 | HID (option) | ||
| 19 | - | ||
| 20 | - | ||
| 21 | Defogger switch | ||
| 22 | - | ||
| 23 | Parking brake switch | ||
| 24 | - | ||
| 25 | - | ||
| 26 | GND 2 |
